PI6LC4820ZDE

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	PI6LC4820ZDE

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	312.5 MHz
Input	LVDS, HCSL, Crystal, LVPECL
Main Purpose	Ethernet
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL, LVDS

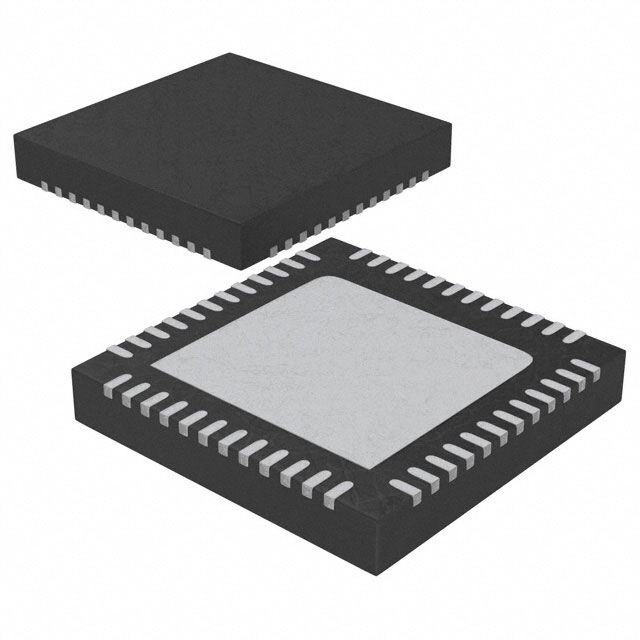

Package / Case	48-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output [custom]	2:9
Supplier Device Package	48-TQFN (7x7)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

NRND = Not Recommended for New Design

Part	Output	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Input	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Main Purpose	Frequency - Max [Max]	Mounting Type	PLL	Ratio - Input:Output [custom]
Diodes Inc PI6LC4820ZDE	LVDS LVPECL	48-TQFN (7x7)	48-VFQFN Exposed Pad	3.6 V	3 V	Crystal HCSL LVDS LVPECL	1	85 °C	-40 °C			Ethernet	312.5 MHz	Surface Mount		2:9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NRND = Not Recommended for New Design

Technical documentation and resources
