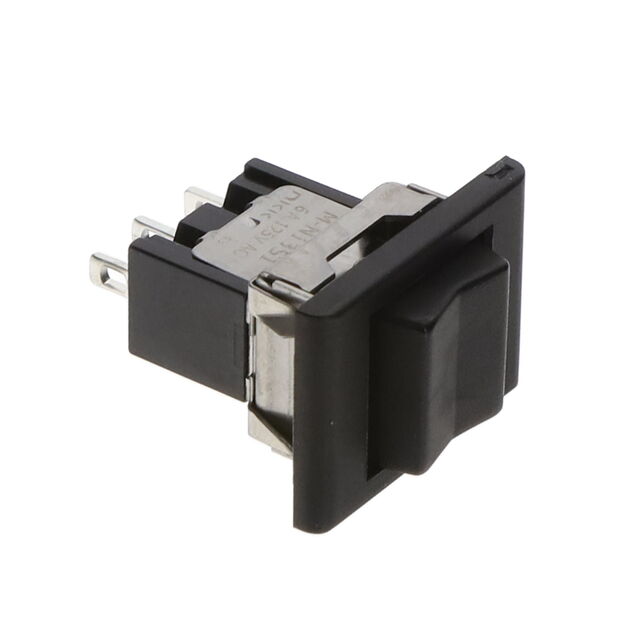

Specification	MN13TJW01-FA-1A

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating	6 A, 3 A
Electrical Life (Cycles)	25000
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Length	15.9 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MN13TJ Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Voltage Rating - AC	Switch Function	Mounting Type	Actuator Marking	Current Rating	Approval Agency	Voltage Rating - DC	Actuator Type	Circuit	Color - Actuator/Cap	Illumination Voltage (Nominal)	Color	Illumination Type
NKK Switches MN13TJW01	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Actuator Arm Cap Required	SPDT
NKK Switches MN13TJW01-GH	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Paddle	SPDT	Gray
NKK Switches MN13TJW03
NKK Switches MN13TJW03-FA-1A
NKK Switches MN13TJW01-FA-1A	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Concave (Standard V)	SPDT	Black
NKK Switches MN13TJG01-FA-3A-CC	50000	50000 Cycles	85 °C	-30 °C	Solder Lug	15.9 mm	Rectangular	18.4 mm	28 V	On-Off-On	Panel Mount Snap-In	No Marking	0.4 VA	UL	28 V	Concave (Standard V) Illuminated	SPDT	Black	2.1 VDC	Red	LED
NKK Switches MN13TJW01-FA-3A-CC	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	15.9 mm	Rectangular	18.4 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Concave (Standard V) Illuminated	SPDT	Black	2.1 VDC	Red	LED
NKK Switches MN13TJW01-GH-1H	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Paddle	SPDT	Gray
NKK Switches MN13TJG01-FA-1A	50000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	28 V	On-Off-On	Panel Mount Snap-In	No Marking	0.4 VA	UL	28 V	Concave (Standard V)	SPDT	Black
NKK Switches MN13TJW01-FA-3A-FF	25000	50000 Cycles	85 °C	-30 °C	Solder Lug	12.5 mm	Rectangular	15.9 mm	125 V	On-Off-On	Panel Mount Snap-In	No Marking	3 A 6 A	UL	30 V	Actuator Arm Cap Required - Illuminated	SPDT	Black	2.2 VDC	Green	LED
