842-030-523-204
ActiveEDAC Inc.
842 HIGH TEMP' SERIES (.100" (2.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-030-523-204
ActiveEDAC Inc.
842 HIGH TEMP' SERIES (.100" (2.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-030-523-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-030 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Contact Type | Termination | Material - Insulation | Number of Positions | Contact Finish | Contact Material | Color | Mounting Type | Read Out | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole Right Angle | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Cantilever | Wire Wrap | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Cantilever | Wire Wrap | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole Right Angle | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-030 Series

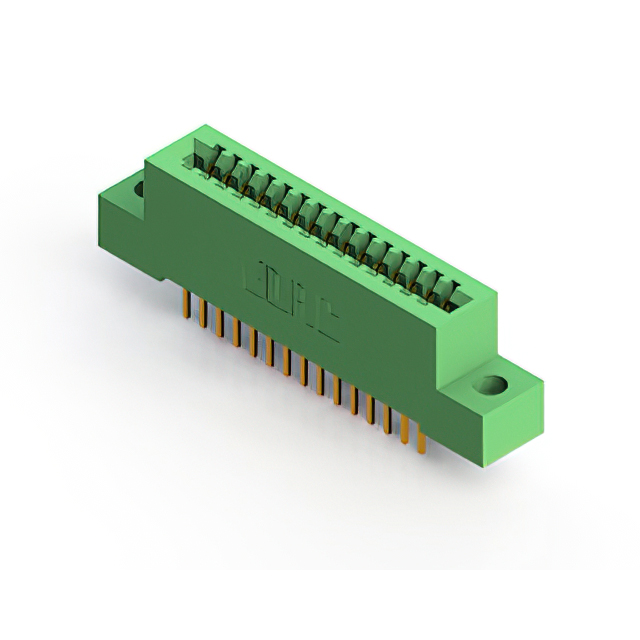

30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
