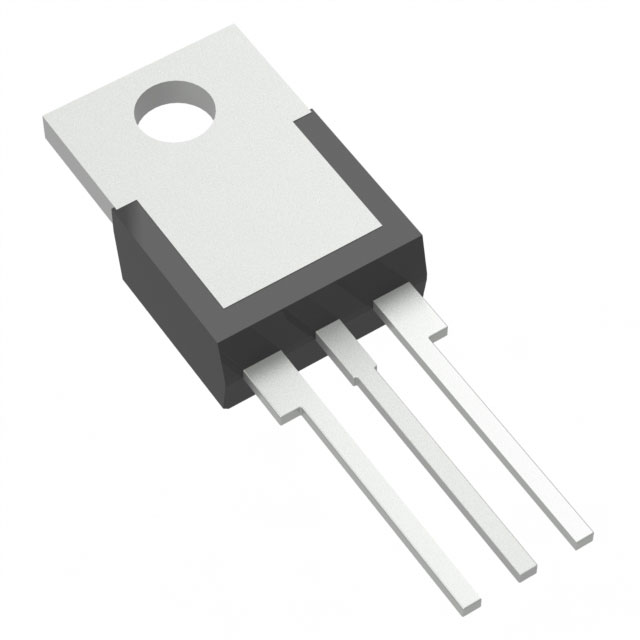

QJ6016RH5TP

Active

IXYS

TRIAC ALTERNISTOR 600V 16A TO220

Search across all available documentation for this part.

Active

IXYS

TRIAC ALTERNISTOR 600V 16A TO220

Technical Specifications

Parameters and characteristics for this part

Specification	QJ6016RH5TP

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	50 mA
Current - Hold (Ih) (Max) [Max]	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	200 A, 167 A
Current - On State (It (RMS)) (Max)	16 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
Supplier Device Package	TO-220
Triac Type	Alternistor - Snubberless
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	600 V

Part	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Triac Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	Current - On State (It (RMS)) (Max)	Configuration	Mounting Type
IXYS QJ6016NH5RP	50 mA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	600 V	50 mA	150 °C	-40 °C	Alternistor - Snubberless	1.3 V	167 A 200 A	TO-263 (D2PAK)	16 A	Single	Surface Mount
IXYS QJ6016RH5TP	50 mA	TO-220-3	600 V	50 mA	150 °C	-40 °C	Alternistor - Snubberless	1.3 V	167 A 200 A	TO-220	16 A	Single	Through Hole
IXYS QJ6016NH5TP	50 mA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	600 V	50 mA	150 °C	-40 °C	Alternistor - Snubberless	1.3 V	167 A 200 A	TO-263 (D2PAK)	16 A	Single	Surface Mount
IXYS QJ6016LH5TP	50 mA	TO-220-3 Isolated Tab	600 V	50 mA	150 °C	-40 °C	Alternistor - Snubberless	1.3 V	167 A 200 A	ITO-220AB	16 A	Single	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Alternistor - Snubberless 600 V 16 A Through Hole TO-220
