45-2844.4C90.006

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

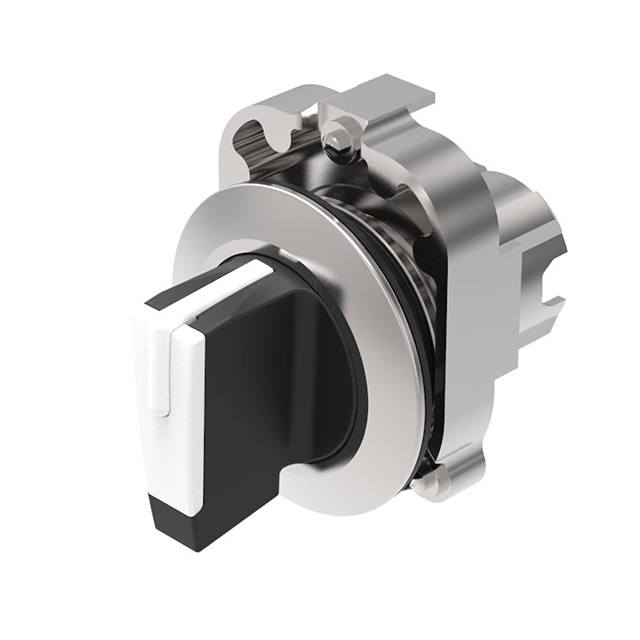

Configurable Switch Body Selector Non-Illuminated

Technical documentation and resources

Specification	45-2844.4C90.006	45-2844 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Momentary	Momentary

Part	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Requires	Type	Illumination
EAO 45-2844.4C90.006	Selector	45, EAO	30.5 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.1C40.006	Selector	45, EAO	22.3 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.4D90.006	Selector	45, EAO	30.5 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.4D50.006	Selector	45, EAO	30.5 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.4C50.006	Selector	45, EAO	30.5 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.3C60.006	Selector	45, EAO	22.3 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.1C20.006	Selector	45, EAO	22.3 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.4C20.006	Selector	45, EAO	30.5 mm	Contact Block(s)	Momentary	Non-Illuminated
EAO 45-2844.1C50.006	Selector	45, EAO	22.3 mm	Contact Block(s)	Momentary	Non-Illuminated
