Specification	43-00094

Backshell Material, Plating	Polyamide (PA6), Nylon 6, Glass Filled
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.236 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	4 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, PA6, Nylon 6
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon 6, Glass Filled, Polyamide (PA6)
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 V

43-0009 Series

Part	Connector Type	Fastening Type	Color	Primary Material	Material Flammability Rating	Termination	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Insert Material	Shell Material	Backshell Material, Plating	Shielding	Voltage Rating	Cable Opening (Min)	Cable Opening (Max)	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Contact Material	Shell Size - Insert	Number of Positions	Orientation
McGill Microwave Systems 43-00094	Female Sockets Plug	Threaded	Black Silver	Plastic	UL94	Screw	Backshell Coupling Nut	85 °C	-30 °C	Gold	Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)	Glass Filled Nylon 6 Polyamide (PA6)	Unshielded	60 V	0.236 in	0.315 in	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	4 A	Copper Zinc	M12-5	5	A
McGill Microwave Systems 43-00096	Female Sockets Plug	Threaded	Black Silver	Plastic	UL94	Screw	Coupling Nut	85 °C	-30 °C	Gold	Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)	Glass Filled Nylon 6 Polyamide (PA6)	Unshielded	250 V	0.236 in	0.315 in	Free Hanging (In-Line) Right Angle	Dust Tight Waterproof	IP67	4 A	Copper Zinc	M12-4	4	A

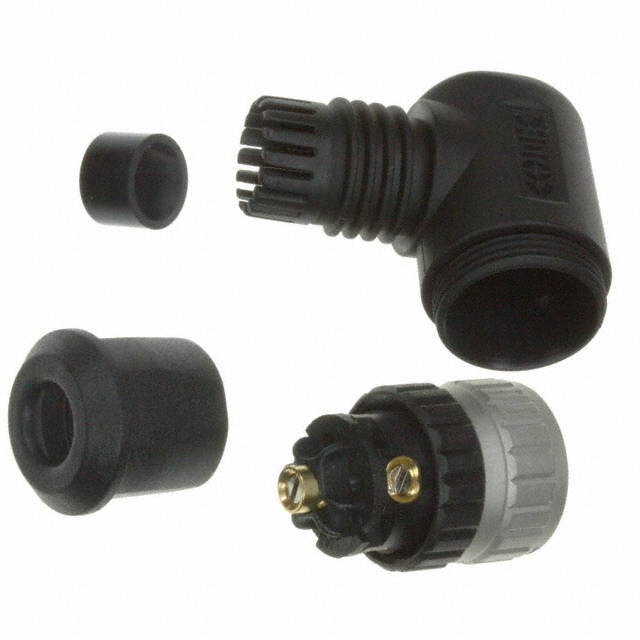

McGill Microwave Systems 43-00098	Female Sockets Plug	Threaded	Black Silver	Plastic	UL94	Screw	Coupling Nut	85 °C	-30 °C	Gold	Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)	Glass Filled Nylon 6 Polyamide (PA6)	Unshielded	60 V	0.236 in	0.315 in	Free Hanging (In-Line) Right Angle	Dust Tight Waterproof	IP67	4 A	Copper Zinc	M12-5	5	A
