262124

Active

Amphenol RF

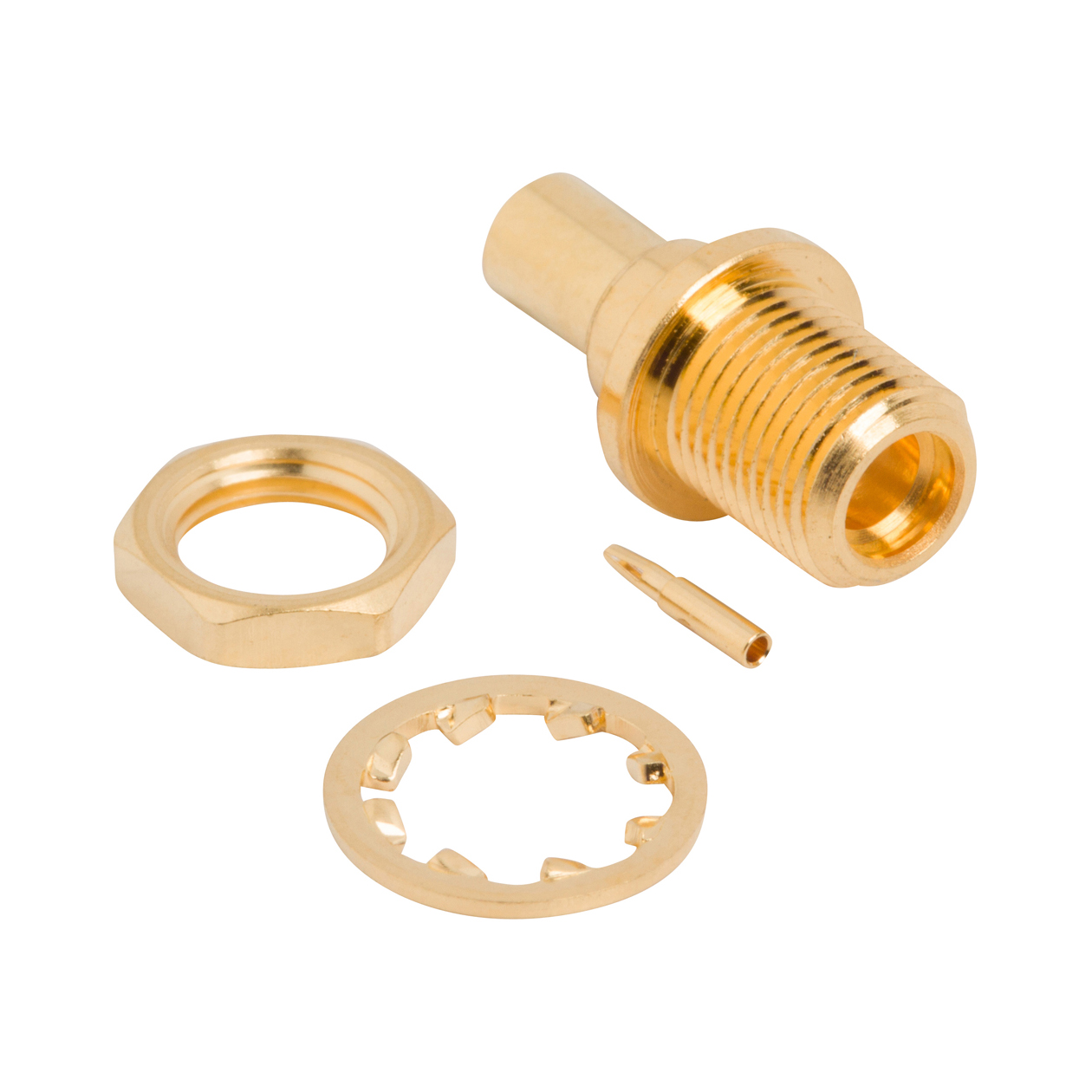

CONN MMCX JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMMCX Connector Catalog

262124

Active

Amphenol RF

CONN MMCX JACK STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsMMCX Connector Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	262124

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Solder
Voltage Rating	170 V

2621 Series

Part	Includes	Number of Ports	Center Contact Plating	Connector Style	Impedance	Body Finish	Contact Termination	Center Contact Material	Fastening Type	Body Material	Connector Type	Dielectric Material	Housing Color	Mating Cycles	Shield Termination	Mounting Feature	Voltage Rating	Cable Group	Frequency - Max [Max]	Cable Group	Mounting Type	Cable Group [Min]	Cable Group [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 262120	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	1	Gold	MMCX	50 Ohms	Gold	Solder	Beryllium Copper	Snap-On	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	500	Crimp	Bulkhead - Front Side Nut	170 V	178A 178B 196 196A M17/93-RG178 RG-178	6000 MHz
Amphenol RF 262126	1 Barrel 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	1	Gold	MMCX	50 Ohms	Gold	Solder	Beryllium Copper	Snap-On	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Bulkhead - Front Side Nut	170 V	Semi Rigid	6000 MHz	0.047 in
Amphenol RF 262113	1 Connector 1 End Cap 1 Insulator	1	Gold	MMCX	50 Ohms	Gold	Solder	Brass	Snap-On	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	500	Solder		170 V	RG-405 Semi Rigid	6000 MHz		Free Hanging (In-Line) Right Angle	0.085 in	0.086 in
Amphenol RF 262106		1	Gold	MMCX	50 Ohms	Gold	Solder	Brass	Snap-On	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	500	Solder		170 V		6000 MHz		Board Edge Cutout Surface Mount
Amphenol RF 262119	1 Connector 1 Contact 1 Ferrule	1	Gold	MMCX	50 Ohms	Gold	Solder	Beryllium Copper	Snap-On	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	500	Crimp		170 V	188 316 Double Braid M17/152-RD316 RG-179	6000 MHz		Free Hanging (In-Line)
Amphenol RF 262138	1 Connector 1 End Cap 2 Ferrules	1	Gold	MMCX	50 Ohms	Gold	Solder	Brass	Snap-On	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	500	Crimp		170 V	1.13mm Coaxial Cable	6000 MHz		Free Hanging (In-Line) Right Angle			-65 ░C	165 °C
Amphenol RF 262147	1 Connector 1 End Cap 1 Ferrule 1 Ring	1	Gold	MMCX	50 Ohms	Gold	Solder	Brass	Snap-On	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	500	Crimp			1.37mm Coaxial Cable	6000 MHz		Free Hanging (In-Line) Right Angle			-65 ░C	165 °C
Amphenol RF 262127	1 Barrel 1 Connector 1 Contact 1 Insulator	1	Gold	MMCX	50 Ohms	Gold	Solder	Brass	Snap-On	Brass	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold	500	Solder		170 V	Semi Rigid	6000 MHz	0.047 in	Free Hanging (In-Line)
Amphenol RF 262124	1 Connector 1 Contact 1 Lockwasher 1 Nut	1	Gold	MMCX	50 Ohms	Gold	Solder	Beryllium Copper	Snap-On	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	500	Solder	Bulkhead - Front Side Nut	170 V	RG-405 Semi Rigid	6000 MHz			0.085 in	0.086 in
Amphenol RF 262107		1	Gold	MMCX	50 Ohms	Gold	Solder	Beryllium Copper	Snap-On	Brass	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	500	Solder		170 V		6000 MHz		Board Edge Cutout Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.79
		10	$ 14.88
		25	$ 14.31
		50	$ 13.74
		100	$ 12.97
		250	$ 11.83
		500	$ 11.07

Description

General part information

2621 Series

MMCX Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

MMCX Connector Catalog

Datasheet
