788-312

Active

WAGO Corporation

POWER RELAY, DPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

788-312

Active

WAGO Corporation

POWER RELAY, DPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.16
		10	$ 22.85
		25	$ 21.65
		50	$ 20.79
		100	$ 19.96
		250	$ 18.91
		500	$ 18.16
Newark	Each	1	$ 29.64
		25	$ 28.11
		100	$ 26.46
		250	$ 24.93
		500	$ 23.15

Description

General part information

788 Series

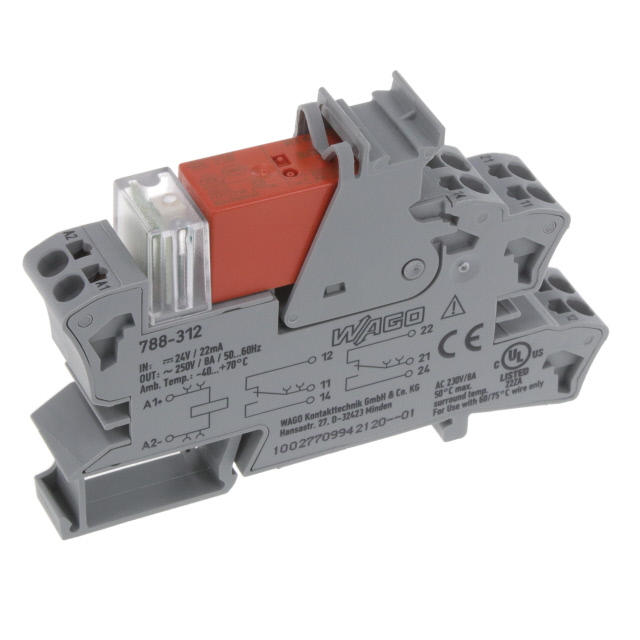

The 788-312 is a Relay Socket with 2-change over small switching relay, 16A contact current rating, 24VDC coil voltage and silver nickel contacts.

Documents

Technical documentation and resources

Specification	788-312	788 Series

Coil Current	19 mA	19 - 36 mA
Coil Resistance	1.3 kOhms	1.3 - 774.2 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 115 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	8 A	6 - 16 A
Features	Lighted Indicator	Lighted Indicator
For Use With/Related Products	-	Terminal Blocks
Load - Max Switching	2000 VA	1500 - 4000 VA
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	21.6 VDC	20.4 - 103.5 VDC
Number of Positions	-	2 - 8
Operate Time	8 ms	8 - 10 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	13 ms	4 - 35 ms
Style	-	Flat Pins
Switching Voltage	250 VAC	250 VAC
Termination Style	Spring Terminal	Spring Terminal
Type	-	Terminal Block, Cross Connection

Part	Style	Number of Positions	For Use With/Related Products	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operate Time	Coil Resistance	Termination Style	Coil Voltage	Relay Type	Load - Max Switching	Must Operate Voltage	Features	Contact Form	Release Time	Coil Current	Contact Rating (Current)	Contact Material	Coil Type	Switching Voltage
WAGO Corporation 788-117	Flat Pins	8	Terminal Blocks	Terminal Block, Cross Connection
WAGO Corporation 788-312					-40 °C	70 °C	DIN Rail	8 ms	1.3 kOhms	Spring Terminal	24 VDC	General Purpose	2000 VA	21.6 VDC	Lighted Indicator	DPDT (2 Form C)	13 ms	19 mA	8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-303					-40 °C	70 °C	DIN Rail	8 ms	333.3 Ohms	Spring Terminal	12 VDC	General Purpose	4000 VA		Lighted Indicator	SPDT (1 Form C)	6 ms	36 mA	16 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-304					-40 °C	70 °C	DIN Rail	8 ms	1.3 kOhms	Spring Terminal	24 VDC	General Purpose	4000 VA	21.6 VDC	Lighted Indicator	SPDT (1 Form C)	6 ms	19 mA	16 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-515					-40 °C	70 °C	DIN Rail	10 ms	14.4 kOhms	Spring Terminal	115 VAC	General Purpose	2000 VA	103.5 VAC	Lighted Indicator	DPDT (2 Form C)	35 ms		8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-384					-40 °C	70 °C	DIN Rail	10 ms	774.2 Ohms	Spring Terminal	24 VDC	General Purpose	1500 VA	20.4 VDC	Lighted Indicator	DPDT (2 Form C)	4 ms	31 mA	6 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-311					-40 °C	70 °C	DIN Rail	8 ms	333.3 Ohms	Spring Terminal	12 VDC	General Purpose	2000 VA		Lighted Indicator	DPDT (2 Form C)	13 ms	36 mA	8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-113	Flat Pins	2	Terminal Blocks	Terminal Block, Cross Connection
WAGO Corporation 788-507					-40 °C	70 °C	DIN Rail	10 ms	14.4 kOhms	Spring Terminal	115 VAC	General Purpose	4000 VA	103.5 VAC	Lighted Indicator	SPDT (1 Form C)	35 ms		16 A	Silver Nickel (AgNi)	Non Latching	250 VAC
