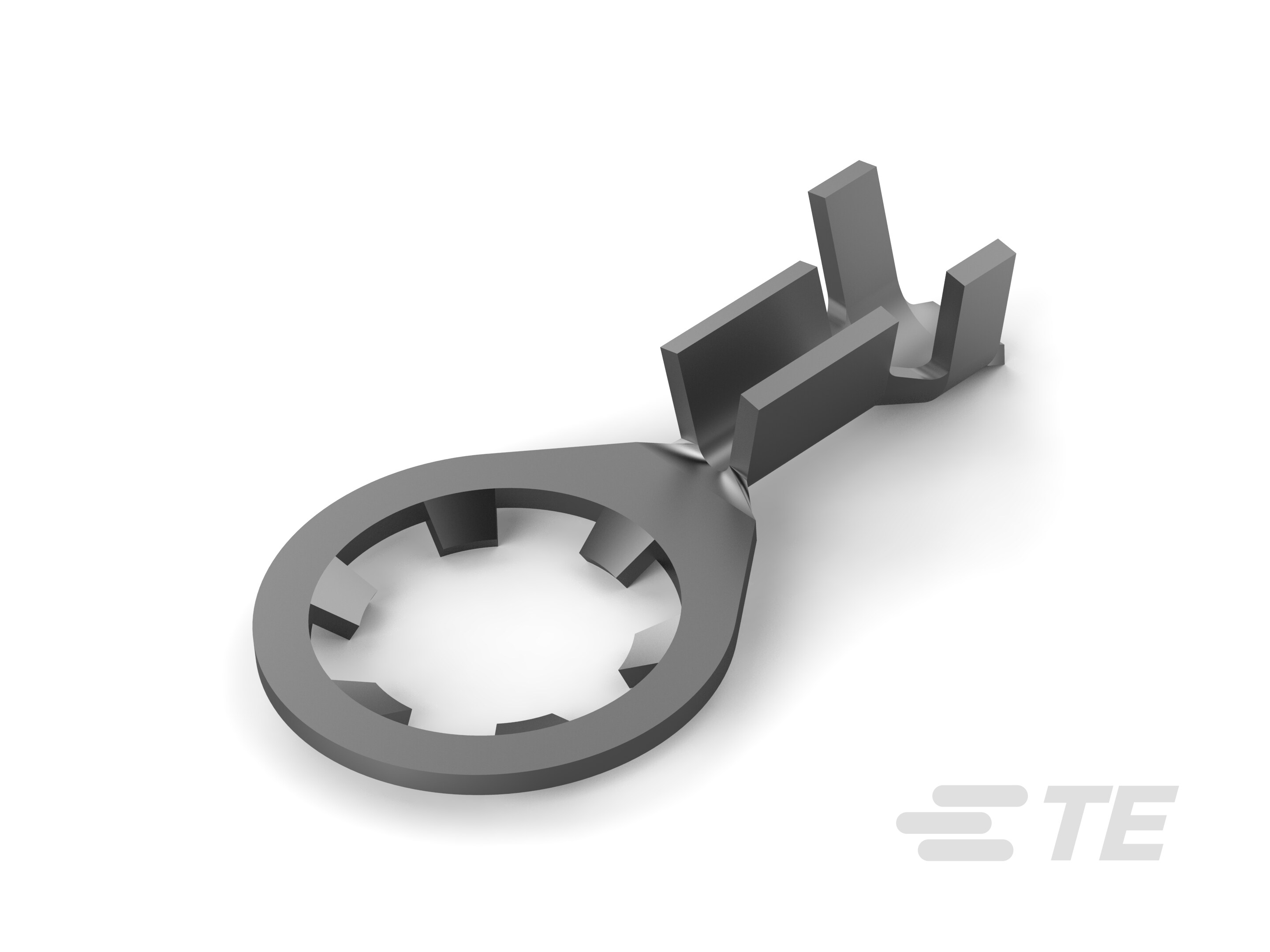

Specification	61283-1

Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination, Inner Teeth
Insulation	Non-Insulated
Insulation Diameter (Max)	0.14 in
Insulation Diameter (Min)	0.1 in
Length - Overall	0.805 in
Mounting Type	Free Hanging (In-Line)
Terminal Type	Oval
Termination	Crimp
Thickness	0.025 in
Width - Outer Edges	0.455 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

61283 Series

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Terminal Type	Insulation	Features	Length - Overall	Width - Outer Edges	Contact Material	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Termination	Mounting Type	Thickness
TE Connectivity AMP Connectors 61283-1	0.1 in	0.14 in	Oval	Non-Insulated	Inner Teeth Serrated Termination	0.805 in	0.455 in	Brass	16 AWG	22 AWG	Tin	Crimp	Free Hanging (In-Line)	0.025 in
