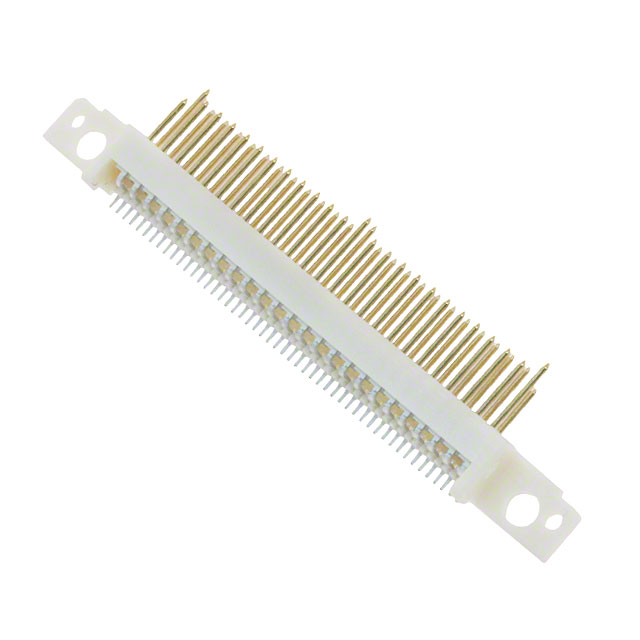

JC26E-BBE
ActiveJAE Electronics
CONN COMPACT FLASH CARD R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JC26E-BBE
ActiveJAE Electronics
CONN COMPACT FLASH CARD R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JC26E-BBE |
|---|---|
| Card Type | CompactFlash® - Type I, II |
| Contact Finish | Gold |
| Features | Board Guide |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.52 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 40 | $ 2.12 | |||
| 80 | $ 2.02 | |||
| 230 | $ 1.77 | |||
Description
General part information
JC26E-BB Series
50 Position Card Connector CompactFlash® - Type I, II Surface Mount, Right Angle Gold
