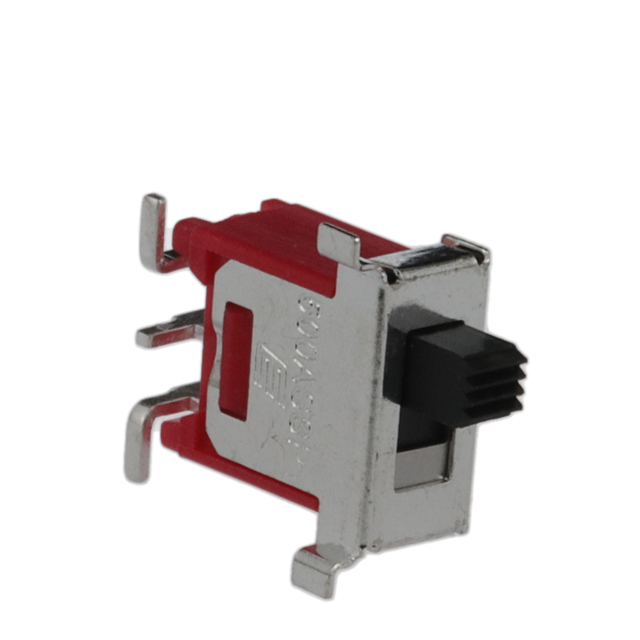

500ASSP1SM6QE
ActiveE-Switch
SWITCH SLIDE SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
500ASSP1SM6QE
ActiveE-Switch
SWITCH SLIDE SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 500ASSP1SM6QE |
|---|---|
| Actuator Length [x] | 3.1 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 3 A |
| Electrical Life | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 30000 Steps |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Switch Travel | 3.05 mm |
| Termination Style | Gull Wing |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.44 | |
| 10 | $ 3.30 | |||
| 25 | $ 3.01 | |||
| 100 | $ 2.61 | |||
| 250 | $ 2.53 | |||
| Digi-Reel® | 1 | $ 3.44 | ||
| 10 | $ 3.30 | |||
| 25 | $ 3.01 | |||
| 100 | $ 2.61 | |||
| 250 | $ 2.53 | |||
| Tape & Reel (TR) | 500 | $ 2.53 | ||
Description
General part information
500ASSP1 Series
Slide Switch SPDT Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
