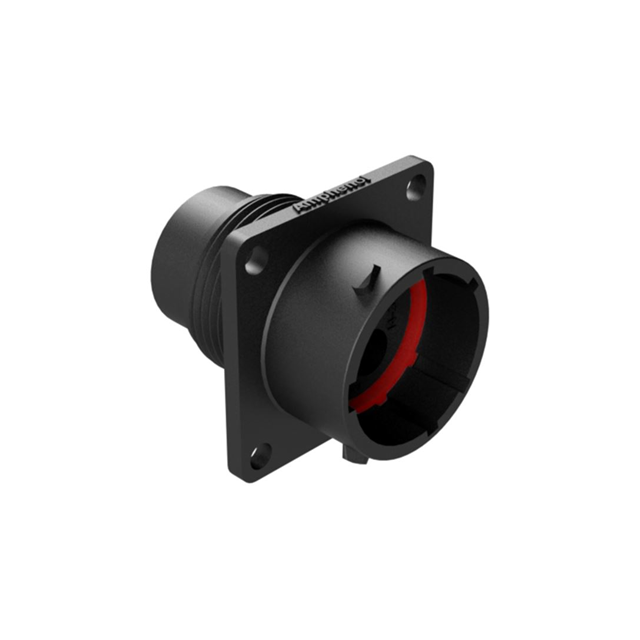

Specification	RTS014N3P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	Gasket, Connector
Includes Total Count	2 pcs
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Male Pins

RTS014 Series

Part	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Shielding	Features	Contact Type	Connector Type	Fastening Type	Mounting Type	Contact Size	Orientation	Number of Positions	Type	Ingress Protection IP Rating	Ingress Protection Description	Material Flammability Rating	Mounting Feature	Housing Color	Operating Temperature (Max)	Operating Temperature (Min)	Note	Insert Material	Contact Shape	Includes Total Count	Includes	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
McGill Microwave Systems RTS014N8SHEC03	14 mm	8 mm	Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	16 S	N (Normal)	8	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular
McGill Microwave Systems RTS014N3S03	14 mm	3 mm	Thermoplastic	Unshielded		Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	8	N (Normal)	3	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular	2 pcs	Connector Gasket

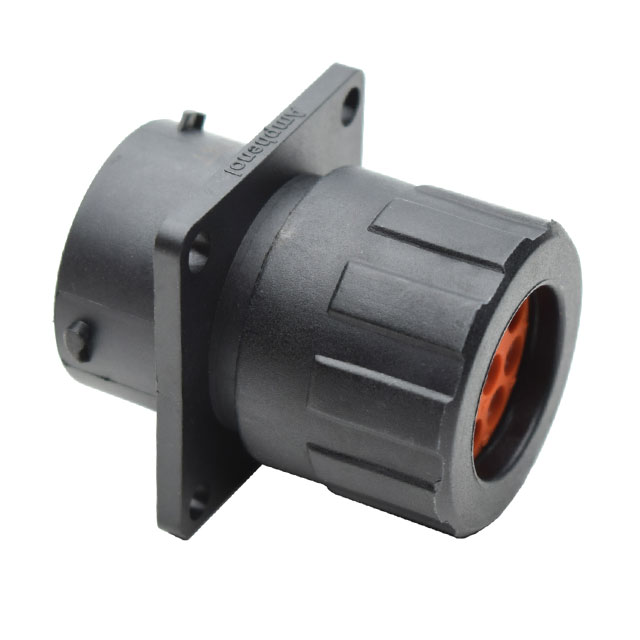

McGill Microwave Systems RTS014N12SHEC03	14 mm	12 mm	Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	16 S	N (Normal)	12	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular
McGill Microwave Systems RTS014N4S03	14 mm	4 mm	Thermoplastic	Unshielded		Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	2.5 mm	N (Normal)	4	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS014N12PHEC03	14 mm	12 mm	Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	16 S	N (Normal)	12	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular
McGill Microwave Systems RTS014N12S03	14 mm	12 mm	Thermoplastic	Unshielded		Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	16 S	N (Normal)	12	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular	2 pcs	Connector Gasket

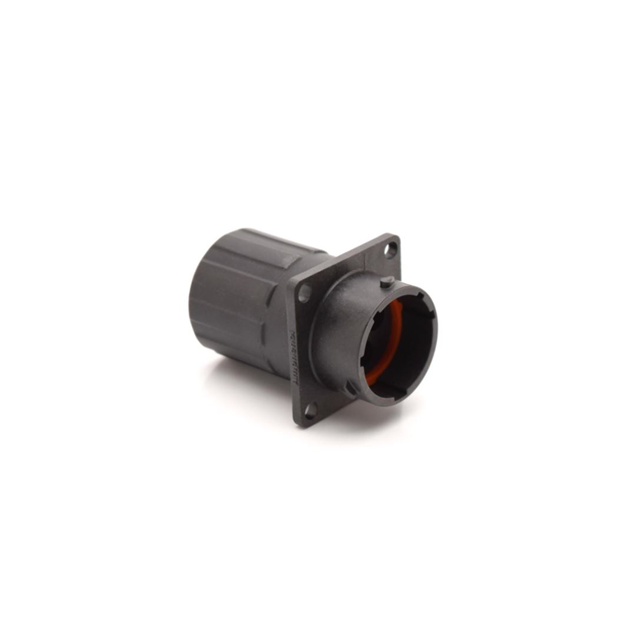

McGill Microwave Systems RTS014N3PHEC03	14 mm	3 mm	Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	8	N (Normal)	3	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular
McGill Microwave Systems RTS014N3SHEC03	14 mm	3 mm	Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	8	N (Normal)	3	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular
McGill Microwave Systems RTS014N3P03	14 mm	3 mm	Thermoplastic	Unshielded		Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	8	N (Normal)	3	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular	2 pcs	Connector Gasket
McGill Microwave Systems RTS014N19SHEC03			Thermoplastic	Unshielded	Backshell	Crimp	Receptacle Housing	Bayonet Lock	Panel Mount	20	N (Normal)	19	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Flange	Black	125 °C	-40 °C	Contacts Not Included	Thermoplastic	Circular			19	14 S
