PSA.1S.405.CTAC62

Active

LEMO

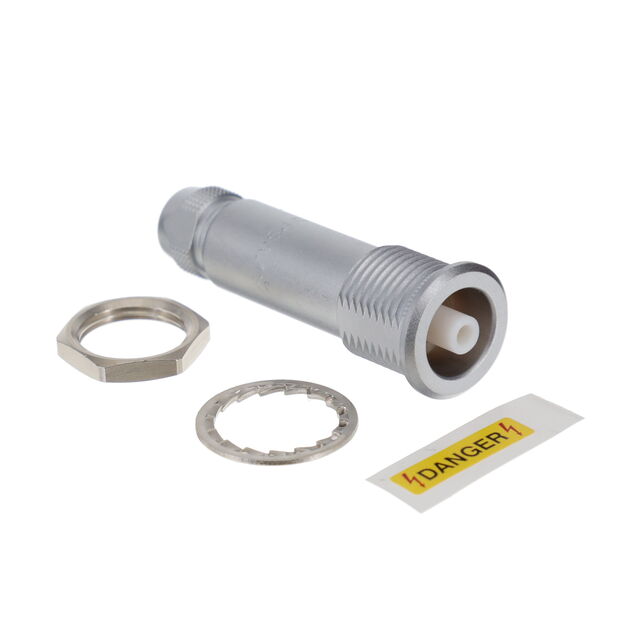

CONN RCPT MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSA.1S.405.CTAC62

Active

LEMO

CONN RCPT MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.76
		10	$ 40.07
		25	$ 38.34
		50	$ 37.10
		100	$ 35.87
		250	$ 33.89

Description

General part information

PSA.1S Series

1 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSA.1S.405.CTAC62	PSA.1S Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	400, 223, 187A, 179B, RG-58C, 302, 59B, 174A, 188A, 196A, 316B, 178B, RG-122, 174, Belden 9222, 178, RG-174
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	4.2 mm
Cable Opening	-	0.232 - 5.7 in
Cable Opening	-	5.9 - 6.5 mm
Cable Opening	-	0.205 - 0.224 in
Cable Opening [Max] [custom]	0.244 in	0.165 - 0.244 in
Cable Opening [Max] [custom]	6.2 mm	6.2 mm
Cable Opening [Min] [custom]	0.224 in	0.126 - 0.224 in
Cable Opening [Min] [custom]	5.7 mm	3.2 - 5.7 mm
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial, Triaxial
Connector Type	Receptacle, Male Pins	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Insert, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	4 A	4 - 25 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount
Number of Ports	-	1
Number of Positions	1	1 - 6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	405	120 - 902
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

PSA.1S Series

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Fastening Type	Material Flammability Rating	Connector Type	Shell Size - Insert	Shell Material	Ingress Protection	Insert Material	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Primary Material	Contact Material	Features	Mounting Feature	Shell Finish	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Connector Style	Mating Cycles	Includes	Center Contact Material	Body Finish	Body Material	Center Contact Plating	Dielectric Material	Shield Termination	Housing Color	Contact Termination	Number of Ports	Impedance	Cable Group	Cable Opening [Max] [custom]
LEMO PSA.1S.902.CLLC52	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	902	Brass	IP50	Polyetheretherketone (PEEK)	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	Silver	Free Hanging (In-Line), Panel Mount	-55 °C	250 °C	Keyed	4	Brass, Chrome	Gold	Metal	Brass, Bronze	Backshell	Bulkhead - Rear Side Nut	Chrome
LEMO PSA.1S.304.CLLC42	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	304	Brass	IP50	Polyetheretherketone (PEEK)	Shielded				Silver	Free Hanging (In-Line), Panel Mount	-55 °C	250 °C	Keyed	4	Brass, Chrome	Gold	Metal	Brass, Bronze	Backshell	Bulkhead - Rear Side Nut	Chrome	10 A	0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO PSA.1S.405.CTAC68	Push-Pull	UL94 V-0	Male Pins, Receptacle	405	Brass	IP50	Polytetrafluoroethylene (PTFE)	Shielded				Silver	Free Hanging (In-Line), Panel Mount	-55 °C	250 °C	Keyed	1	Brass, Chrome	Gold	Metal	Brass	Backshell	Bulkhead - Rear Side Nut	Chrome	4 A
LEMO PSA.1S.405.CTLC52	Push-Pull	UL94 V-0	Receptacle, Female Sockets	405	Brass	IP50	Polytetrafluoroethylene (PTFE)	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	Silver	Free Hanging (In-Line), Panel Mount	-55 °C	250 °C	Keyed	1	Brass, Chrome	Gold	Metal	Bronze	Backshell	Bulkhead - Rear Side Nut	Chrome	8 A
LEMO PSA.1S.405.ZTL41		UL94 V-0	Female Sockets, Insert	405		IP50	Polytetrafluoroethylene (PTFE)	Shielded						-55 °C	250 °C	Keyed	1		Gold		Bronze	Insert Only, Requires Shell			8 A
LEMO PSA.1S.275.CTLC66	Push-Pull		Female Socket, Receptacle			IP50								-55 °C	250 °C								Bulkhead - Rear Side Nut							Coaxial	1000	1 Connector, 1 Lockwasher, 1 Nut	Beryllium Copper	Chrome	Brass	Gold	Polytetrafluoroethylene (PTFE)	Clamp	Silver	Solder	1	75 Ohms	179B, 187A, 223, 302, 400, 59B, RG-58C
LEMO PSA.1S.306.ZLL		UL94 V-0	Female Sockets, Insert, Male Pins	306		IP50	Polyetheretherketone (PEEK)	Shielded						-55 °C	250 °C	Keyed	6		Gold		Brass, Bronze	Insert Only, Requires Shell			7 A
LEMO PSA.1S.405.CTAC62	Push-Pull	UL94 V-0	Male Pins, Receptacle	405	Brass	IP50	Polytetrafluoroethylene (PTFE)	Shielded				Silver	Free Hanging (In-Line), Panel Mount	-55 °C	250 °C	Keyed	1	Brass, Chrome	Gold	Metal	Brass	Backshell	Bulkhead - Rear Side Nut	Chrome	4 A	0.224 in		0.244 in	5.7 mm															6.2 mm
LEMO PSA.1S.250.ZTL	Push-Pull		Female Socket, Receptacle			IP50								-55 °C	250 °C								Bulkhead - Rear Side Nut							Coaxial	1000	1 Connector, 1 Lockwasher, 1 Nut	Beryllium Copper			Gold	Polytetrafluoroethylene (PTFE)	Clamp		Solder		50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122
LEMO PSA.1S.250.CTLC27	Push-Pull		Female Socket, Receptacle			IP50								-55 °C	250 °C								Bulkhead - Rear Side Nut							Coaxial	1000	1 Connector, 1 Lockwasher, 1 Nut	Beryllium Copper	Chrome	Brass	Gold	Polytetrafluoroethylene (PTFE)	Clamp	Silver	Solder	1	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122
