307-050-459-278
ActiveEDAC Inc.

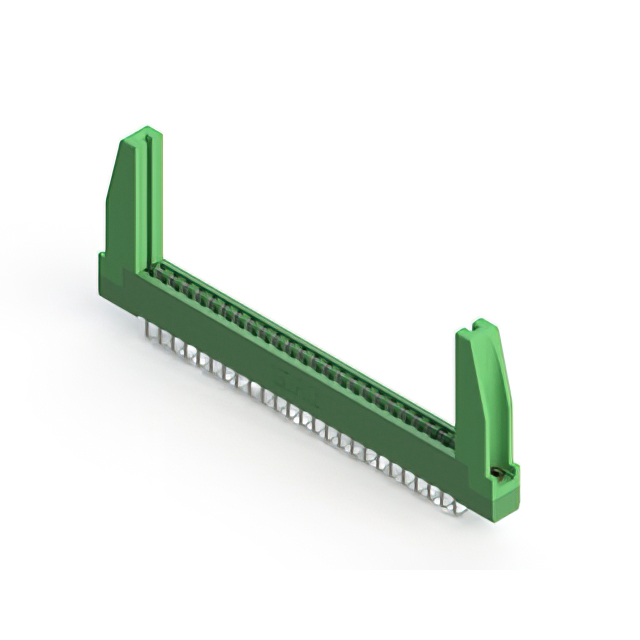

CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-050-459-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-050-459-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-050 Series
...
| Part | Read Out | Contact Finish | Color | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Number of Positions/Bay/Row [custom] | Flange Feature | Features | Pitch [x] | Pitch [x] | Contact Type | Termination Rows | Card Type | Number of Positions | Contact Material | Material - Insulation | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Board Edge Straddle Mount | ||||
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | Female | 25 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | 3.96 mm | 0.156 in | |||
EDAC Inc. | Dual | Gold | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Board Edge Straddle Mount | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole Right Angle | ||||
EDAC Inc. | Dual | Gold | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | Female | 25 | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | ||||||
EDAC Inc. | Dual | Tin | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | Female | 25 | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Gold | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder Eyelet(s) | Female | 25 | Flush Mount M3 Threaded Insert Top Opening | Card Extender | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Dual | Gold | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | Female | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.156 in | 3.96 mm | Semi Bellows | 2 | Non Specified - Dual Edge | 50 | Copper Alloy | Polyester Thermoplastic | Through Hole | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 16.73 | |
Description
General part information
307-050 Series
50 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
