K151-1020-00

Active

Jacob GmbH

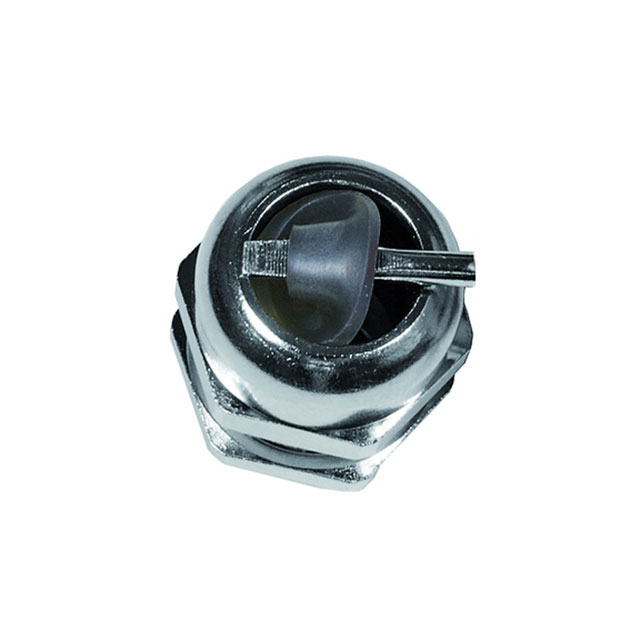

CABLE GLAND 8-15MM M20 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 8-15MM M20 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	K151-1020-00

Color	Silver
Includes	O-Ring, Seal, Contact Spring
Ingress Protection	IP69, IP66, IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.591 in
Outside Cable Diameter (Max) [Max] [diameter]	15 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M20x1.5
Type	Cable Gland

Part	Ingress Protection	Thread Size	Thread Length	Thread Length	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type
Jacob GmbH K151-1020-00	IP66 IP68 IP69	M20x1.5	8 mm	0.315 in	Silver	8 mm	0.315 in	Contact Spring O-Ring Seal	Brass Nickel Plated	0.591 in	15 mm	100 °C	-40 °C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20x1.5 Silver
