MH14-38RK
Active3M

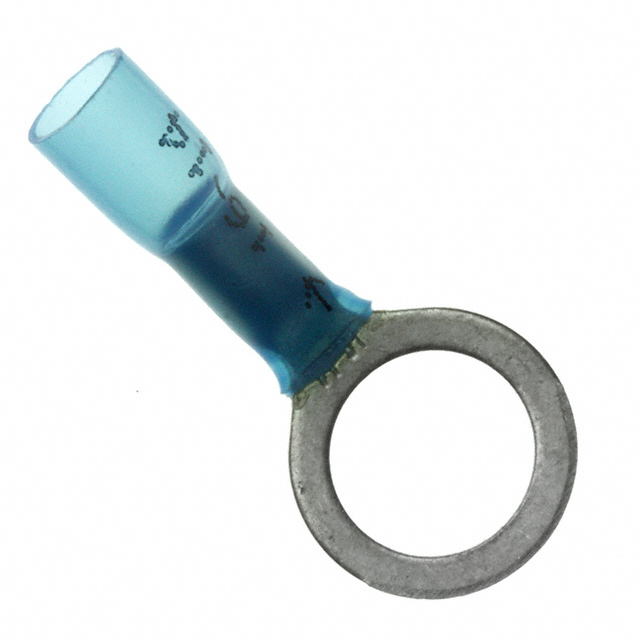

RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 27.94MM TIN CASE
Deep-Dive with AI
Search across all available documentation for this part.
MH14-38RK
Active3M
RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 27.94MM TIN CASE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MH14-38RK | MH14 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated with Heat Shrink | Insulated with Heat Shrink, Fully Insulated Heat Shrink |
| Length - Overall | - | 25.4 mm |
| Length - Overall [x] | 27.94 mm | 27.94 mm |
| Length - Overall [x] | 1.1 in | 1 - 1.1 in |
| Length - Ring Center to Termination | - | 0.12 in |
| Length - Ring Center to Termination | - | 3.05 mm |
| Length - Termination | - | 16.26 mm |
| Length - Termination | - | 0.64 in |
| Length - Termination | - | 14.73 mm |
| Length - Termination | - | 0.58 in |
| Material - Insulation [custom] | Polyolefin | Polyolefin |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 3/8 Stud | 8 Stud, 3/8 Stud |
| Stud/Tab Size | - | 0.3125 - 10 Stud |
| Terminal Type | Circular | Circular, Snap, Spring, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.76 mm | 0.76 mm |
| Width - Outer Edges | - | 7.87 mm |
| Width - Outer Edges [y] | 14.22 mm | 6.35 - 14.22 mm |
| Width - Outer Edges [y] | 0.56 in | 0.25 - 0.56 in |
MH14 Series
BRAZED SEAM RING TONGUE HEAT SHRINK TERMINAL (BULK)
| Part | Mounting Type | Termination | Features | Terminal Type | Material - Insulation [custom] | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size | Color | Contact Finish | Thickness | Thickness | Width - Outer Edges | Stud/Tab Size | Length - Overall | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Length - Termination [custom] | Length - Termination [custom] | Length - Termination | Length - Termination | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Crimp | Brazed Seam | Circular | Polyolefin | Copper, ETP | 27.94 mm | 1.1 in | Insulated with Heat Shrink | 0.47 in | 11.94 mm | 0.3125 Stud | Blue | Tin | 0.03 in | 0.76 mm | |||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Circular | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | 0.31 in | Blue | Tin | 0.03 in | 0.76 mm | 7.87 mm | 8 Stud | 25.4 mm | |||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Snap, Spring | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | 0.25 " | 6.35 mm | 6 Stud | Blue | Tin | 25.4 mm | 0.12 in | 3.05 mm | 16.26 mm | 0.64 in | |||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Snap, Spring | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | Blue | Tin | 8 Stud | 25.4 mm | 0.12 in | 3.05 mm | 14.73 mm | 0.58 in | |||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Circular | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | 0.31 in | 10 Stud | Blue | Tin | 0.03 in | 0.76 mm | 7.87 mm | 25.4 mm | |||||||||||
3M MH14BCK | Crimp | Butt Splice, Individual Openings, Inline | Fully Insulated Heat Shrink | Blue | 2 | |||||||||||||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Snap, Spring | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | 0.25 " | 6.35 mm | 6 Stud | Blue | Tin | 25.4 mm | 0.12 in | 3.05 mm | 16.26 mm | 0.64 in | |||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Snap, Spring | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | Blue | Tin | 8 Stud | 25.4 mm | 0.12 in | 3.05 mm | 14.73 mm | 0.58 in | |||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Circular | Polyolefin | Copper, ETP | 1 in | Insulated with Heat Shrink | 0.31 in | Blue | Tin | 0.03 in | 0.76 mm | 7.87 mm | 8 Stud | 25.4 mm | |||||||||||
Free Hanging (In-Line) | Crimp | Brazed Seam | Circular | Polyolefin | Copper, ETP | 27.94 mm | 1.1 in | Insulated with Heat Shrink | 0.56 in | 14.22 mm | Blue | Tin | 0.03 in | 0.76 mm | 3/8 Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MH14 Series
Ring Terminal Connector 3/8 Stud Circular 14-16 AWG Crimp
Documents
