CI160808-82NJ

Bourns Inc.

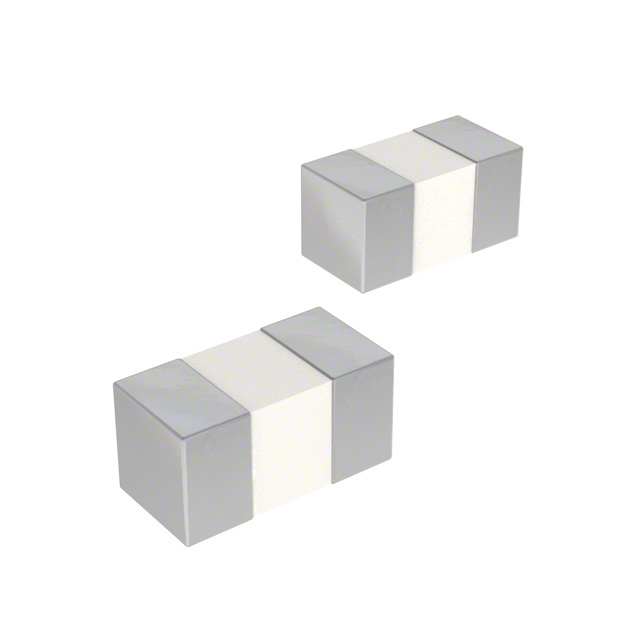

INDUCTOR, 82NH, 600MHZ, 0603 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

CI160808-82NJ

Bourns Inc.

INDUCTOR, 82NH, 600MHZ, 0603 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CI160808-82NJ

Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	1.5 Ohm
Frequency - Self Resonant	600 MHz
Height - Seated (Max) [Max] [z]	0.037 "
Height - Seated (Max) [Max] [z]	0.95 mm
Inductance	82 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	10, 100 MHz
Shielding	Unshielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	5 %
Type	Multilayer

CI160808 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Tolerance	Inductance	Current Rating (Amps)	Supplier Device Package	Supplier Device Package	Mounting Type	Shielding	Package / Case	DC Resistance (DCR)	Q @ Freq	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Type	DC Resistance (DCR) [Max]
Bourns Inc. CI160808-5N6D	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	0.3 nH	5.6 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)	290 mOhm	10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	2.7 GHz	Multilayer
Bourns Inc. CI160808-R18J	0.8 mm	0.063 in	1.6 mm	0.031 in	50 MHz	5 %	180 nH	0.2 A	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)		8 50 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	400 MHz	Multilayer	2.7 Ohm
Bourns Inc. CI160808-68NJ	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	5 %	68 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)		10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	700 MHz	Multilayer	1.2 Ohm
Bourns Inc. CI160808-6N8J	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	5 %	6.8 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)		10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	2.6 GHz	Multilayer	300 mOhm
Bourns Inc. CI160808-1N8D	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	0.3 nH	1.8 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)	120 mOhm	8	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	3.8 GHz	Multilayer
Bourns Inc. CI160808-82NJ	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	5 %	82 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)		10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	600 MHz	Multilayer	1.5 Ohm
Bourns Inc. CI160808-27NJ	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	5 %	27 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)		10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	1.1 GHz	Multilayer
Bourns Inc. CI160808-5N6DC	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	0.3 nH	5.6 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)	290 mOhm	10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	2.7 GHz	Multilayer
Bourns Inc. CI160808-3N3D	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	0.3 nH	3.3 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)	220 mOhm	10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C	3.2 GHz	Multilayer
Bourns Inc. CI160808-8N2J	0.8 mm	0.063 in	1.6 mm	0.031 in	100 MHz	5 %	8.2 nH	300 mA	1608 Metric	0603	Surface Mount	Unshielded	0603 (1608 Metric)	330 mOhm	10 100 MHz	Ceramic	0.037 "	0.95 mm	-55 °C	125 °C		Multilayer

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.05
		100	$ 0.04
		1000	$ 0.03
	Digi-Reel®	1	$ 0.10
		10	$ 0.05
		100	$ 0.04
		1000	$ 0.03
	Tape & Reel (TR)	4000	$ 0.03
		8000	$ 0.03
		12000	$ 0.03
		20000	$ 0.03
		28000	$ 0.03
		40000	$ 0.03
		100000	$ 0.02
		200000	$ 0.02
		400000	$ 0.02
Newark	Each (Supplied on Cut Tape)	10	$ 0.06
		25	$ 0.06
		50	$ 0.05
		100	$ 0.05

Description

General part information

CI160808 Series

82 nH Unshielded Multilayer Inductor 300 mA 1.5Ohm Max 0603 (1608 Metric)
