117-83-430-41-005101

Active

Preci-Dip

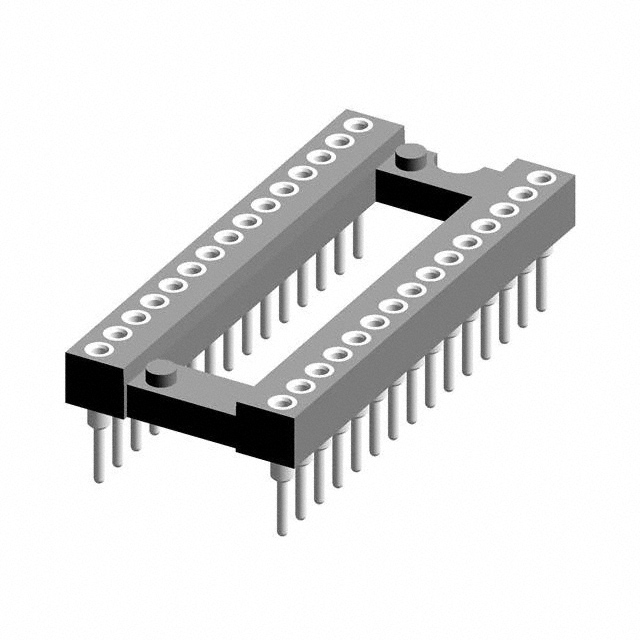

CONN IC DIP SOCKET 30POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

117-83-430-41-005101

Active

Preci-Dip

CONN IC DIP SOCKET 30POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1710	$ 1.97

Description

General part information

117-83 Series

30 (2 x 15) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	117-83-430-41-005101	117-83 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	29.5 Áin	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám	0.75 Ám
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	30	16 - 68
Number of Positions or Pins (Grid)	-	2 x 16
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid) [custom]	2	2
Number of Positions or Pins (Grid) [custom]	15	15 - 20
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.07 in	0.07 in
Pitch - Mating	1.78 mm	1.78 mm
Pitch - Post	0.07 in	0.07 in
Pitch - Post	1.78 mm	1.78 mm
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.4 in	0.3 - 0.6 in
Type	10.16 mm	7.62 - 15.24 mm
Type	DIP	DIP

117-83 Series

CONN IC DIP SOCKET 56POS GOLD

Part	Current Rating (Amps)	Termination	Contact Material - Mating	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Type	Type	Type	Pitch - Post	Pitch - Post	Mounting Type	Contact Resistance	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Housing Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 117-83-656-41-105101	1 A	Solder	Beryllium Copper	56	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-648-41-105101	1 A	Solder	Beryllium Copper	48	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-656-41-005101	1 A	Solder	Beryllium Copper	56	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-432-41-005101	1 A	Solder	Beryllium Copper		29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.4 in	10.16 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin	2 x 16	32
Preci-Dip 117-83-664-41-105101	1 A	Solder	Beryllium Copper	64	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-620-41-005101	1 A	Solder	Beryllium Copper	20	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-316-41-105101	1 A	Solder	Beryllium Copper	16	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.3 "	7.62 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-624-41-105101	1 A	Solder	Beryllium Copper	24	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-428-41-105101	1 A	Solder	Beryllium Copper	28	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.4 in	10.16 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin
Preci-Dip 117-83-430-41-005101	1 A	Solder	Beryllium Copper	30	29.5 Áin	0.75 Ám	3.18 mm	0.125 in	DIP	0.4 in	10.16 mm	0.07 in	1.78 mm	Through Hole	10 mOhm	Brass	-55 °C	125 °C	Open Frame	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Gold	0.07 in	1.78 mm	UL94 V-0	Tin			2	15
