Q-1S0490008001M

Active

Amphenol Custom Cable

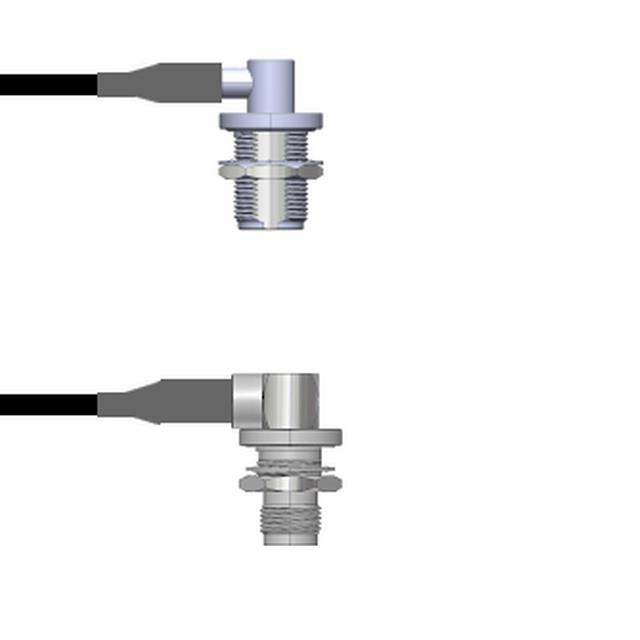

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S0490008001M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S0490008001M

1st Connector	N-Type Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms

Q-1S0490 Series

Part	Color	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	Length	Length	Length	2nd Connector Mounting Feature	Features	1st Connector	Overall Impedance	1st Connector Mounting Feature	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1S04900081.5M	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	59.1 in	4.9 ft	1.5 m	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008.25M	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female				Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58	9.843 "	250 mm
Amphenol Custom Cable Q-1S0490008048i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	48 in	4 ft	1200 mm	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008108i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	108 in	9 ft	2.7 m	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008036i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	36 in		91.44 cm	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008006i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	6 in		152.4 mm	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008001M	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	39.4 in	3.3 ft	1 m	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008018i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female				Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S0490008072i	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	72 in	6 ft	1.8 m	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58
Amphenol Custom Cable Q-1S0490008002M	Black	TNC Jack Right Angle	6000 MHz	Panel Mount	Female	Panel Mount	Female	78.7 in	6.6 ft	2 m	Bulkhead - Front Side Nut	Shielded	N-Type Jack Right Angle	50 Ohms	Bulkhead - Front Side Nut	RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 148.69
		25	$ 145.89
		50	$ 143.08
		100	$ 140.27
		250	$ 137.46

Description

General part information

Q-1S0490 Series

Cable Assembly Coaxial N-Type to TNC RG-58 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
