SP338EER1-L

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 3/5 40QFN

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC TRANSCEIVER FULL 3/5 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	SP338EER1-L

Data Rate	1 Mbps
Duplex	Full
Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	5
Number of Drivers/Receivers [custom]	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

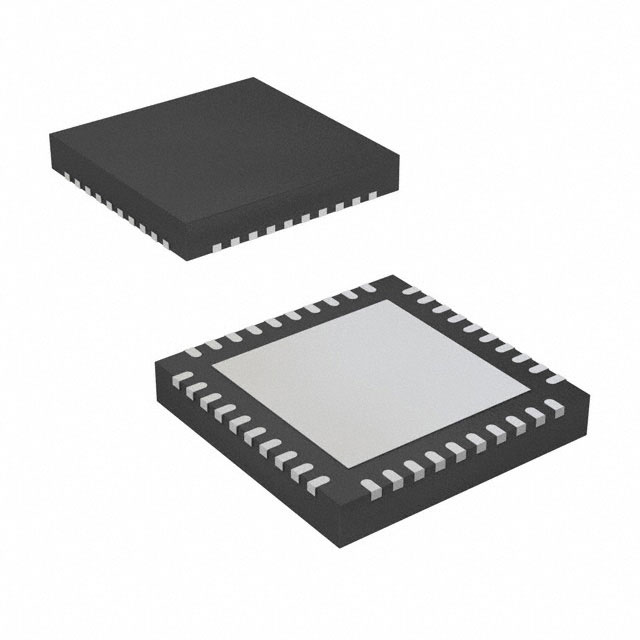

Package / Case	40-VFQFN Exposed Pad
Protocol	RS485, RS422, RS232
Receiver Hysteresis	300 mV
Supplier Device Package	40-QFN (6x6)
Type	Transceiver
Voltage - Supply	5 V, 3.3 V

IC TRANSCEIVER FULL 3/5 40QFN

Part	Package / Case	Protocol	Data Rate	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Receiver Hysteresis	Supplier Device Package	Type	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Duplex	Mounting Type
MaxLinear, Inc. SP338EER1-L	40-VFQFN Exposed Pad	RS232, RS422, RS485	1 Mbps	5	3	300 mV	40-QFN (6x6)	Transceiver	3.3 V, 5 V	85 °C	-40 °C	Full	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3/5 Transceiver Full RS232, RS422, RS485 40-QFN (6x6)
