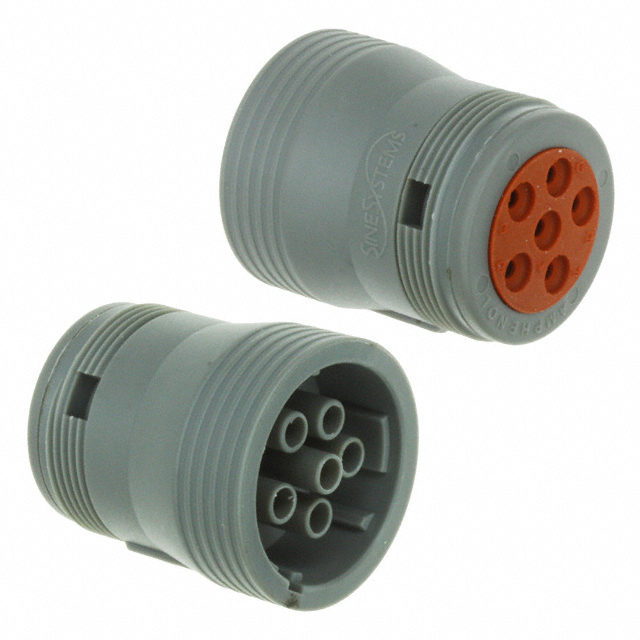

Specification	AHD16-6-12S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Gray
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Material	Thermoplastic
Shielding	Unshielded
Type	For Female Sockets

AHD16 Series

Part	Shell Material	Connector Type	Shielding	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Contact Size	Note	Operating Temperature (Max)	Operating Temperature (Min)	Type	Housing Color	Features	Number of Positions	Contact Shape	Contact Type	Mounting Type
McGill Microwave Systems AHD16-9-1939S80	Thermoplastic	Plug Housing	Unshielded	Keyed	Dust Tight Waterproof	IP67	Bayonet Lock	16 S	Contacts Not Included	125 °C	-55 °C	For Female Sockets	Green	Coupling Nut	9	Circular	Crimp	Free Hanging (In-Line)
McGill Microwave Systems AHD16-6-12S	Thermoplastic	Plug Housing	Unshielded	Keyed	Dust Tight Waterproof	IP67	Push-Pull	12	Contacts Not Included	125 °C	-55 °C	For Female Sockets	Gray		6	Circular	Crimp	Free Hanging (In-Line)
McGill Microwave Systems AHD16-9-96S	Thermoplastic	Plug Housing	Unshielded	Keyed	Dust Tight Waterproof	IP67	Bayonet Lock	16 S	Contacts Not Included	125 °C	-55 °C	For Female Sockets	Gray	Coupling Nut	9	Circular	Crimp	Free Hanging (In-Line)
