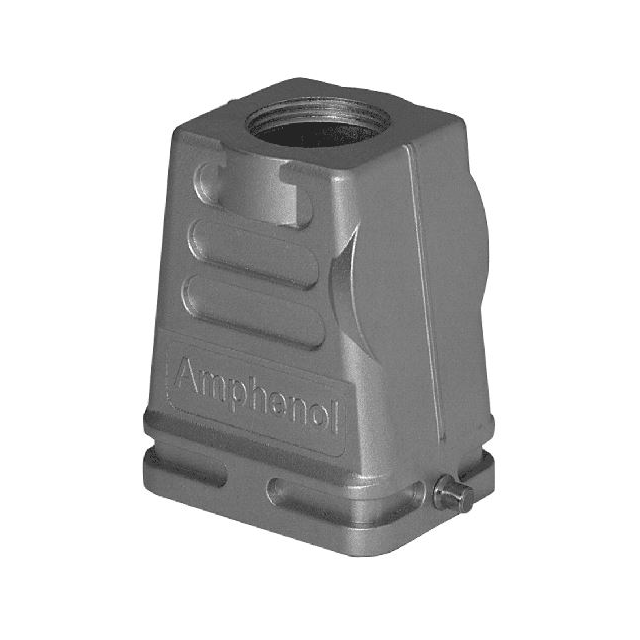

C146 67R006 607 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE6 M25
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C146 67R006 607 1
ActiveAmphenol Tuchel Industrial
CONN HOOD TOP ENTRY SZE6 M25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 67R006 607 1 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 51 mm |
| Size / Dimension [z] | 2.008 in |
| Style | Top Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 17.87 | |
Description
General part information
C146 67R006 Series
Hood Connector Top Entry M25 E6 IP67 - Dust Tight, Waterproof
