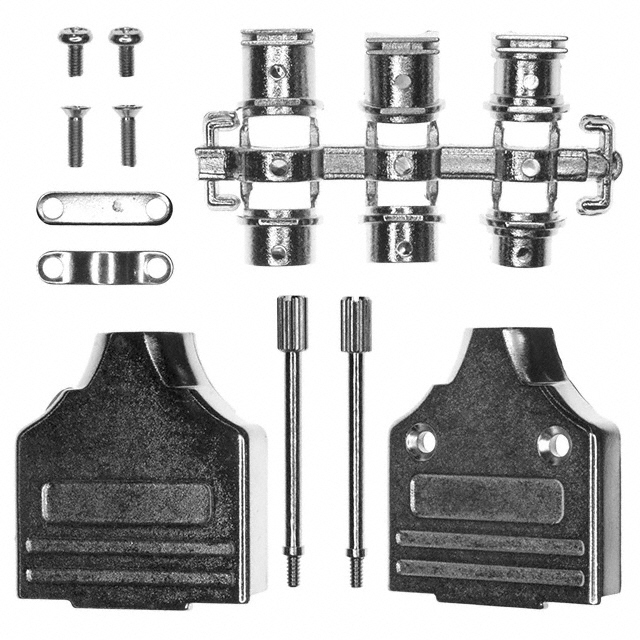

952-015-030R121
ActiveD SUB BACKSHELL, ARMOR 952 SERIES, DA, 180°, ZINC BODY
Deep-Dive with AI
Search across all available documentation for this part.
952-015-030R121
ActiveD SUB BACKSHELL, ARMOR 952 SERIES, DA, 180°, ZINC BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 952-015-030R121 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Metal, Zinc |
| Number of Positions | 15 |
| Plating | Nickel over Copper |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
952-015 Series
The ARMOR 952 series D-Sub Backshell is designed for rugged/robust applications. It is featuring all metal die cast housing and this backshell offers high reliability performance for the most challenging design applications. It is available in 4 industry sizes/positions (9, 15, 25 and 37). It is more robust design for those areas that need it and the 4-40 thumbscrews are supplied with backshell.
