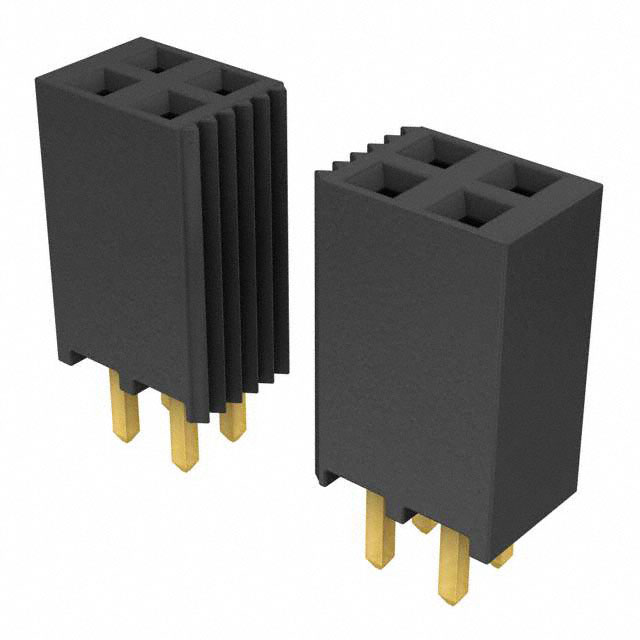

SSQ-139-01-G-D

Active

Samtec Inc.

CONN RCPT 78POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSSQ Through Hole Footprint Datasheet

SSQ-139-01-G-D

Active

Samtec Inc.

CONN RCPT 78POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsSSQ Through Hole Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-139-01-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	78
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-139 Series

Part	Contact Finish - Post	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Style	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. SSQ-139-01-G-S	Gold	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	0.335 "	8.51 mm	Square	0.104 in	2.64 mm	Forked	39	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle	3 µin	0.076 µm	Gold	Push-Pull	Board to Board Cable	Solder	Black	0.51 µm	20 µin	465 VAC 655 VDC	1
Samtec Inc. SSQ-139-02-T-D-RA	Tin	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	-55 °C	105 ░C	0.195 in	4.95 mm	Square	0.1 in	2.54 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-03-S-D	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	0.335 "	8.51 mm	Square	0.394 in	10 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle			Gold	Push-Pull	Board to Board Cable	Solder	Black	0.76 Ám	30 Áin	465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-01-S-D	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	0.335 "	8.51 mm	Square	0.104 in	2.64 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle			Gold	Push-Pull	Board to Board Cable	Solder	Black	0.76 Ám	30 Áin	465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-02-T-D	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C	0.335 "	8.51 mm	Square	0.194 in	4.93 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-01-T-T	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C	0.335 "	8.51 mm	Square	0.104 in	2.64 mm	Forked	117	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	3	2.54 mm	0.1 in
Samtec Inc. SSQ-139-01-G-D	Gold	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	125 °C	0.335 "	8.51 mm	Square	0.104 in	2.64 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle	3 µin	0.076 µm	Gold	Push-Pull	Board to Board Cable	Solder	Black	0.51 µm	20 µin	465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-03-T-D	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C	0.335 "	8.51 mm	Square	0.394 in	10 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-01-T-D	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C	0.335 "	8.51 mm	Square	0.104 in	2.64 mm	Forked	78	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	2	2.54 mm	0.1 in
Samtec Inc. SSQ-139-03-T-S	Tin	Liquid Crystal Polymer (LCP)	Through Hole	-55 °C	105 ░C	0.335 "	8.51 mm	Square	0.394 in	10 mm	Forked	39	All	0.1 in	2.54 mm	UL94 V-0	Phosphor Bronze	Receptacle				Push-Pull	Board to Board Cable	Solder	Black			465 VAC 655 VDC	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.09
		10	$ 12.48
		100	$ 10.88
		500	$ 9.28
		1000	$ 8.52

Description

General part information

SSQ-139 Series

78 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

SSQ Through Hole Footprint

Datasheet
