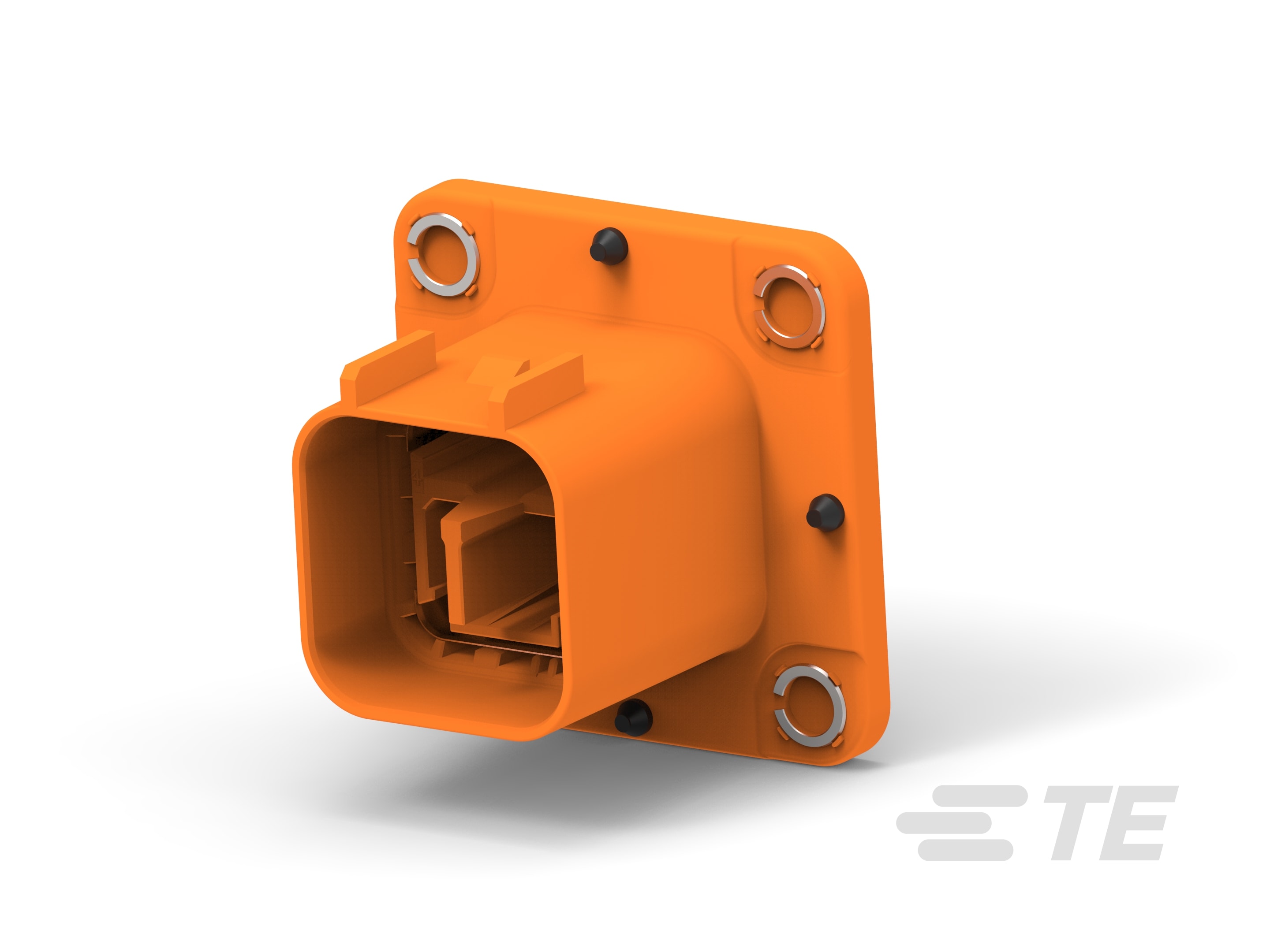

Specification	2141272-1

Color	Orange
Connector Type	Header
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Locking Ramp
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	140 °C
Operating Temperature (Min)	-40 °C
Pitch	0.37 in

HVA 630 Series

Part	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Connector Type	Mounting Type	Contact Type	Pitch	Number of Rows	Color	Features	Number of Positions	Fastening Type	Accessory Type	For Use With/Related Products	Cable Termination	Wire Type	Terminal Type	Termination	Contact Area (Max)	Contact Area (Min)	Tool Type	Contact Finish
TE Connectivity AMP Connectors 2318821-1	Crimp	120 °C	-40 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	Plug	Free Hanging (In-Line)	Tab	0.472 in	2	Orange	Sealed	5	Push-Pull
TE Connectivity AMP Connectors 2234443-1														Holder	Bench Press - Applicator
TE Connectivity AMP Connectors 2348822-1														Terminator	Bench Press - Applicator
TE Connectivity AMP Connectors YHVA630-2PHM-4MM-A					Plug	Free Hanging (In-Line)	Male Pin	0.37 in	1	Orange		2	Latch Holder			Crimp	Discrete
TE Connectivity AMP Connectors YHVA630-4PHM-4MM-A										Orange								Male Pin (Plug)	Crimp
TE Connectivity AMP Connectors 2359754-1															6mm² Ferrules					6 mm²	6 mm²	Die Set
TE Connectivity AMP Connectors YHVA630-5PHM-6MM-A					Receptacle	Free Hanging (In-Line)	Female Socket				Sealed	3	Lever Lock			Crimp	Discrete						Silver
TE Connectivity AMP Connectors 2141272-1	Crimp	140 °C	-40 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Free Hanging (In-Line)	Tab	0.37 in	1	Orange		2	Locking Ramp

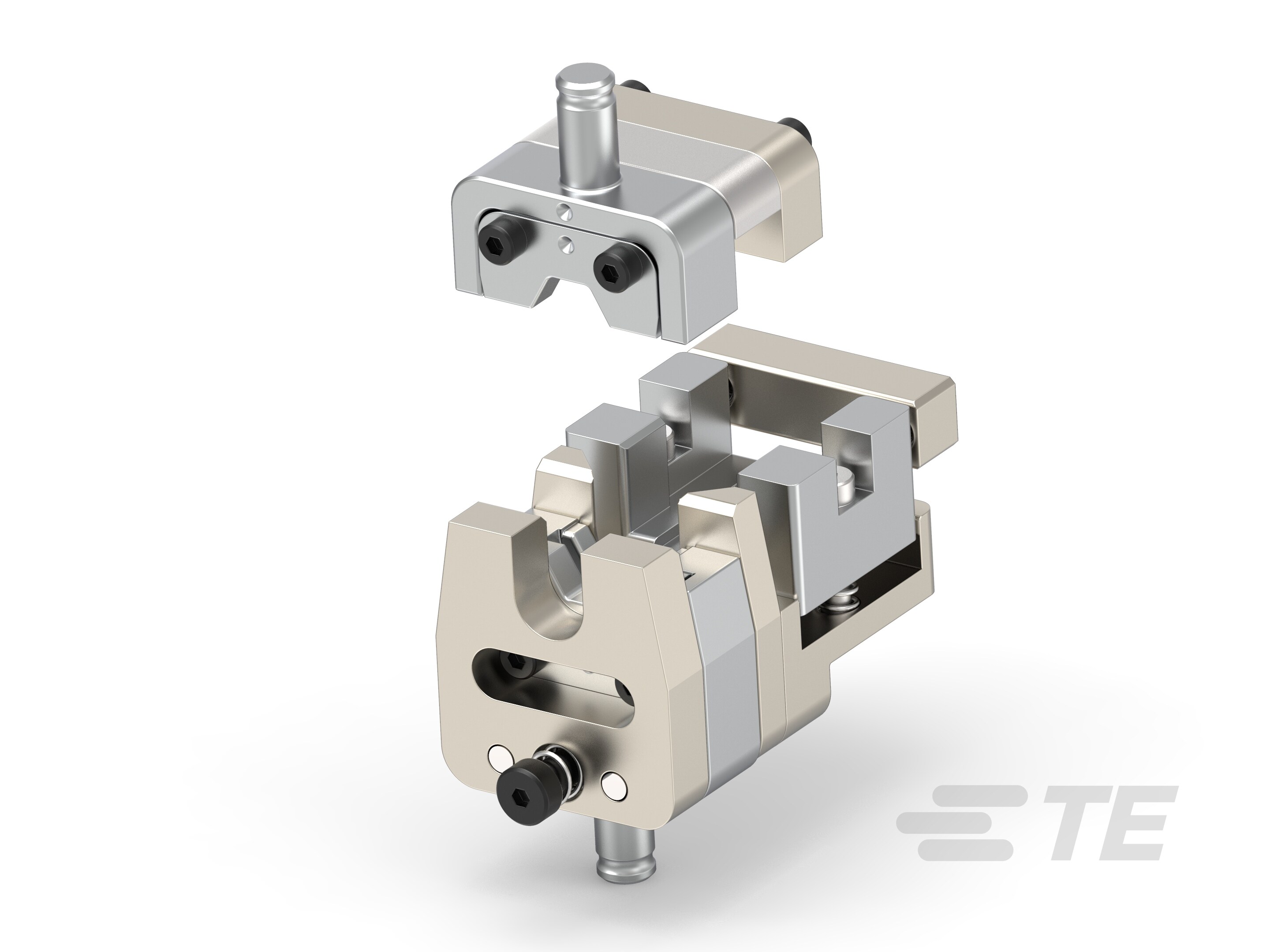

TE Connectivity AMP Connectors 2371495-1															Modular Plugs							Die Set
TE Connectivity AMP Connectors 2236454-1
