Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1650103132-000 | T1650 Series |
|---|---|---|
| Connector Type | Base - Box Mount | Base - Box Mount |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H10B | H10B, H6B |
| Size / Dimension [x] | 3.701 " | 3.228 - 3.701 " |
| Size / Dimension [x] | 94 mm | 82 - 94 mm |
| Size / Dimension [y] | 2.244 " | 2.244 " |
| Size / Dimension [y] | 57 mm | 57 mm |
| Size / Dimension [z] | 75.6 mm | 75.6 mm |
| Size / Dimension [z] | 2.976 " | 2.976 " |
| Style | Side Entry | Side Entry |
| Thread Size | M32 | M32, PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.66 | |
| 10 | $ 14.36 | |||
| 25 | $ 13.98 | |||
| 50 | $ 13.29 | |||
| 100 | $ 11.99 | |||
| 250 | $ 11.91 | |||
| 500 | $ 10.39 | |||
T1650 Series
T1650103132-000
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Style | Lock Location | Size | Ingress Protection | Connector Type | Housing Color | Housing Finish | Thread Size | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1650103132-000 | 125 °C | -40 °C | 2.244 " | 75.6 mm | 57 mm | 3.701 " | 2.976 " | 94 mm | Side Entry | Locking Clip (1) on Base Bottom | H10B | IP65 - Dust Tight, Water Resistant | Base - Box Mount | Gray | Powder Coated | M32 | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1650063129-000 | 125 °C | -40 °C | 2.244 " | 75.6 mm | 57 mm | 3.228 in | 2.976 " | 82 mm | Side Entry | Locking Clip (1) on Base Bottom | H6B | IP65 - Dust Tight, Water Resistant | Base - Box Mount | Gray | Powder Coated | PG29 | Aluminum Alloy, Die Cast |
Description
General part information
T1650 Series

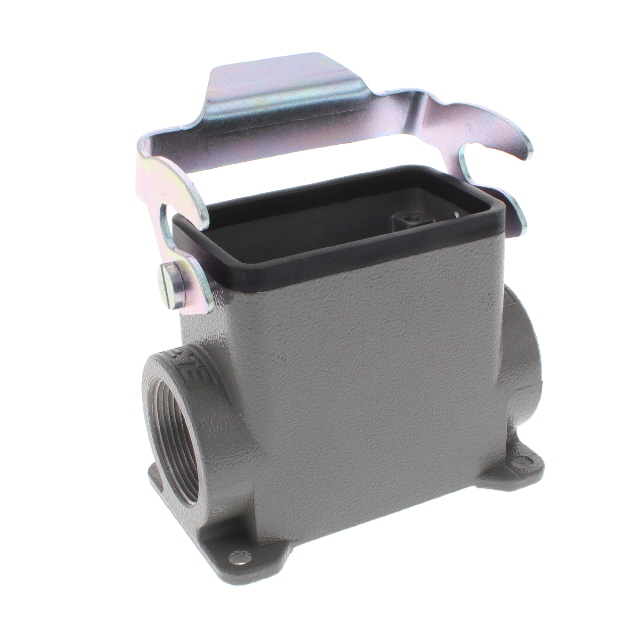

Base - Box Mount Connector Side Entry M32 H10B IP65 - Dust Tight, Water Resistant
