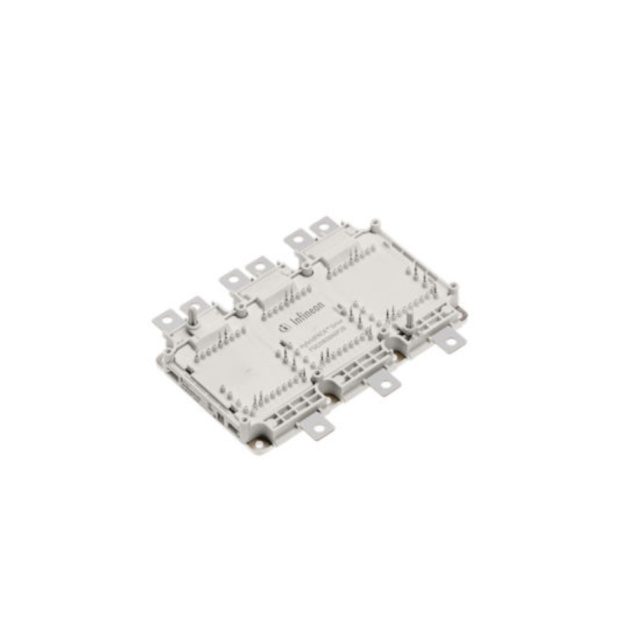

FS820R08A6P2BBPSA1

Active

Infineon Technologies

THE FS820R08A6P2B IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ DRIVE HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 820 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FS820R08A6P2BBPSA1

Active

Infineon Technologies

THE FS820R08A6P2B IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT EDT2 MODULE IN A HYBRIDPACK™ DRIVE HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 750 V AND 820 A.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS820R08A6P2BBPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	450 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	80 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	714 W
Supplier Device Package	AG-HYBRIDD-2
Vce(on) (Max) @ Vge, Ic	1.35 V
Voltage - Collector Emitter Breakdown (Max) [Max]	750 V

FS820R08 Series

Part	Configuration	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Input	Supplier Device Package	IGBT Type	Package / Case	Mounting Type	NTC Thermistor	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Input Capacitance (Cies) @ Vce	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]
Infineon Technologies FS820R08A6P2LBBPSA1	Three Phase Inverter	820 A	175 °C	Standard	Module	Trench Field Stop	Module	Chassis Mount
Infineon Technologies FS820R08A6P2BBPSA1	Three Phase Inverter	450 A		Standard	AG-HYBRIDD-2	Trench Field Stop	Module	Chassis Mount		1.35 V	750 V	714 W	80 nF	150 °C	-40 °C	1 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 523.89
		12	$ 504.19
Newark	Each	1	$ 401.98

Description

General part information

FS820R08 Series

HybridPACK™Drive module with EDT2 IGBT and Diode is an automotive qualified power module designed forHybrid- and Electric Vehicle applications. Find appropriateAutomotive EiceDRIVER™.
