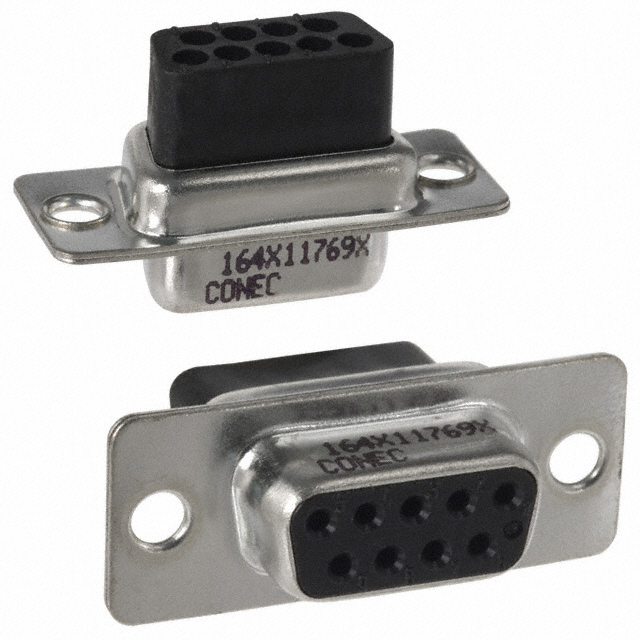

164X11769X

Active

Amphenol CONEC

D SUB HOUSING, RCPT, 9POS, DE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB HOUSING, RCPT, 9POS, DE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	164X11769X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	320 µin
Shell Finish Thickness	8.13 µm
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

Part	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Number of Rows	Connector Style	Mounting Type	Flange Feature	Shell Finish Thickness	Shell Finish Thickness	Note	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Shell Size, Connector Layout
Amphenol CONEC 164X11769X	Polybutylene Terephthalate (PBT) Glass Filled	Black	-55 °C	125 °C	9	Receptacle for Female Contacts	2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	320 µin	8.13 µm	Contacts Not Included	DE E	1	Signal
Amphenol CONEC 164X11799X	Polybutylene Terephthalate (PBT) Glass Filled	Black	-55 °C	125 °C	37	Receptacle for Female Contacts	2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	320 µin	8.13 µm	Contacts Not Included			Signal	4 (DC C)
Amphenol CONEC 164X11789X	Polybutylene Terephthalate (PBT) Glass Filled	Black	-55 °C	125 °C		Receptacle for Female Contacts	2	D-Sub	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	320 µin	8.13 µm	Contacts Not Included	B DB	3	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Sub Connector 9 Position
