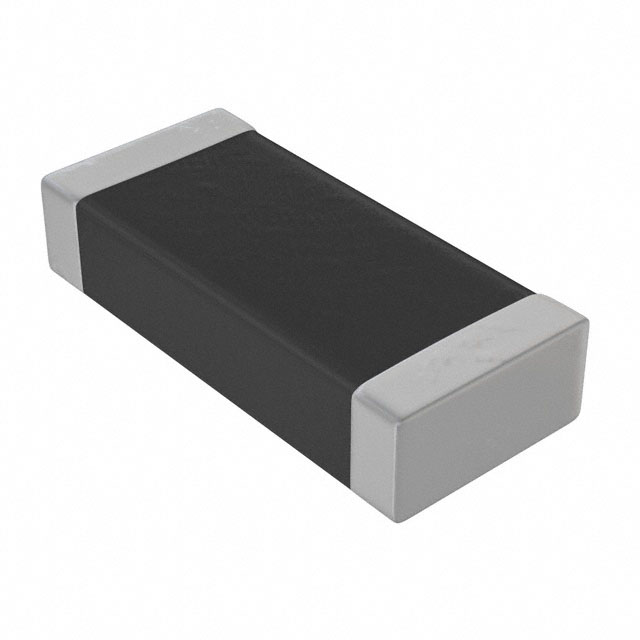

C1808V104KBRAC7800
ActiveKEMET
CAP CER 0.1UF 630V X7R 1808
Deep-Dive with AI
Search across all available documentation for this part.
C1808V104KBRAC7800
ActiveKEMET
CAP CER 0.1UF 630V X7R 1808
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1808V104KBRAC7800 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100000 pF |
| Features | ArcShield™, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1808 |
| Package / Case | 4520 Metric |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.085 in |
| Thickness (Max) [Max] | 2.15 mm |
| Tolerance | 10 % |
| Voltage - Rated | 630 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.40 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.40 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.21 | |||
| Tape & Reel (TR) | 1000 | $ 0.17 | ||
| 2000 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.14 | |||
| 25000 | $ 0.14 | |||
| 50000 | $ 0.13 | |||
Description
General part information
C1808V Series
0.1 µF ±10% 630V Ceramic Capacitor X7R 1808 (4520 Metric)
