89740 002500

Active

Belden Inc.

CABLE 2COND 18AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	89740 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	3.35 mm
Jacket (Insulation) Diameter [diameter]	0.132 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.229 mm
Jacket (Insulation) Thickness	0.009 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Ratings	Length [x]	Length [x]	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 89740 002500	18 AWG	Red	0.229 mm	0.009 in	Fluorinated Ethylene-Propylene (FEP) Plenum	19	30 AWG	Copper Tinned	Multi-Conductor	UL Style CMP	500 '	152.4 m	2	200 °C	-70 °C	300 V	Fluorinated Ethylene-Propylene (FEP)	3.35 mm	0.132 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.65

General part information

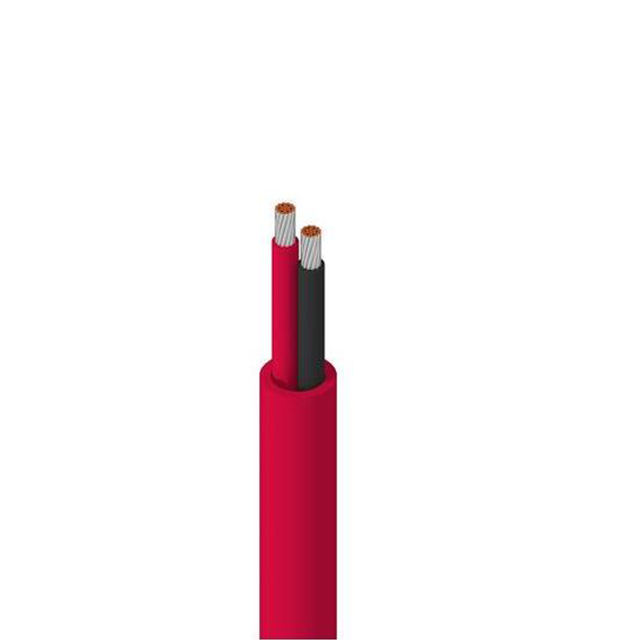

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Red 18 AWG 500.0' (152.4m)
