P50L-050S-A-DA
Active3M
80000923914 P50L-050S-A-DA =PAK50 CONNECTOR/ROHS
Deep-Dive with AI
Search across all available documentation for this part.
P50L-050S-A-DA
Active3M
80000923914 P50L-050S-A-DA =PAK50 CONNECTOR/ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P50L-050S-A-DA | P50L Series |
|---|---|---|
| Connector Type | Socket, Outer Shroud Contacts | Socket, Outer Shroud Contacts |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | Flash |
| Contact Finish Thickness | - | 3 - 10 Áin |
| Contact Finish Thickness | - | 0.076 - 0.25 Ám |
| Features | Flange, Board Lock | Solder Retention, Board Guide, Flange, Board Lock |
| Height Above Board | 0.213 in | 0.213 - 0.354 in |
| Height Above Board | 5.4 mm | 0.275 - 9 mm |
| Height Above Board | - | 5 - 8.4 mm |
| Height Above Board | - | 0.197 - 0.331 in |
| Height Above Board | - | 6.99 mm |
| Mated Stacking Heights | 7 mm, 9 mm | 7 - 12 mm |
| Mounting Type | Through Hole | Surface Mount, Through Hole, Through Hole, Right Angle |
| Number of Positions | 50 | 20 - 120 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
P50L Series
CONN PLUG 80POS SMD GOLD
| Part | Contact Finish | Pitch [x] | Pitch [x] | Height Above Board [z] | Height Above Board [z] | Number of Positions | Mated Stacking Heights | Mounting Type | Features | Number of Rows | Height Above Board | Height Above Board | Connector Type | Contact Finish Thickness | Height Above Board | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 0.05 in | 1.27 mm | 5 mm | 0.197 in | 80 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | ||||||||
Gold | 0.05 in | 1.27 mm | 40 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | 6.4 mm | 0.252 in | Outer Shroud Contacts, Socket | |||||||
Gold | 0.05 in | 1.27 mm | 8 mm | 0.315 in | 40 | 9 mm, 10 mm, 12 mm | Through Hole | Board Lock, Flange | 2 | ||||||||
Gold | 0.05 in | 1.27 mm | 50 | 7 mm, 9 mm | Through Hole | Board Lock, Flange | 2 | 5.4 mm | 0.213 in | Outer Shroud Contacts, Socket | Flash | ||||||
Gold | 0.05 in | 1.27 mm | 20 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | 5.4 mm | 0.213 in | Outer Shroud Contacts, Socket | Flash | ||||||
Gold | 0.05 in | 1.27 mm | 5 mm | 0.197 in | 60 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | Flash | |||||||
Gold | 0.05 in | 1.27 mm | 60 | Through Hole, Right Angle | Board Lock, Flange | 2 | 0.275 in | Flash | 6.99 mm | ||||||||
Gold | 0.05 in | 1.27 mm | 20 | Through Hole, Right Angle | 2 | 0.275 in | Outer Shroud Contacts, Socket | 6.99 mm | 3 Áin | 0.076 Ám | |||||||
Gold | 0.05 in | 1.27 mm | 60 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | 5.4 mm | 0.213 in | Outer Shroud Contacts, Socket | Flash | ||||||
Gold | 0.05 in | 1.27 mm | 40 | 7 mm, 8 mm | Surface Mount | Board Guide, Solder Retention | 2 | 6.4 mm | 0.252 in | Outer Shroud Contacts, Socket | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
P50L Series

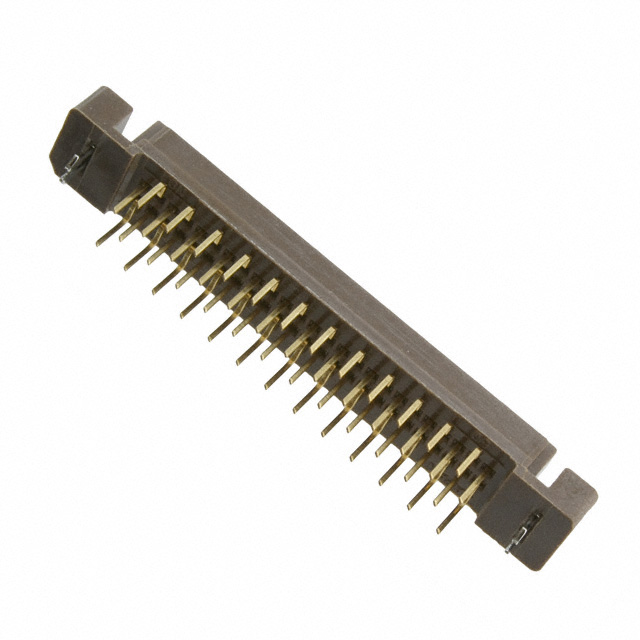

50 Position Connector Socket, Outer Shroud Contacts Through Hole Gold
