P50L-060P-AS-DA

Active

80000907107 P50L-060P-AS-DA=PAK50 CONNECTOR/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Mating Guide

P50L-060P-AS-DA

Active

80000907107 P50L-060P-AS-DA=PAK50 CONNECTOR/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Mating Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 10.05
Newark	Each	100	$ 11.66
		250	$ 10.83
		500	$ 10.12

Description

General part information

P50L Series

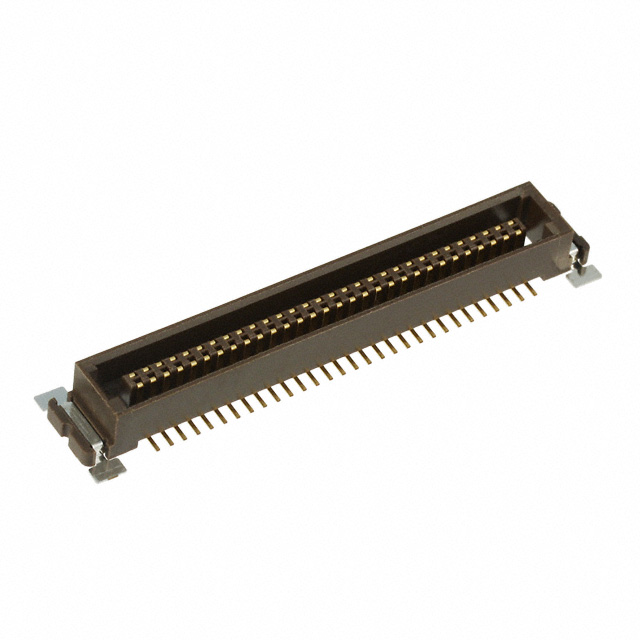

60 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Interconnect Mating Guide

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P50L-060P-AS-DA	P50L Series

Connector Type	-	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	3 - 10 Áin
Contact Finish Thickness	-	0.076 - 0.25 Ám
Features	Solder Retention, Board Guide	Solder Retention, Board Guide, Flange, Board Lock
Height Above Board	-	0.275 - 9 mm
Height Above Board	-	0.213 - 0.354 in
Height Above Board	-	6.99 mm
Height Above Board [z]	5 mm	5 - 8.4 mm
Height Above Board [z]	0.197 in	0.197 - 0.331 in
Mated Stacking Heights	7 mm, 8 mm	7 - 12 mm
Mounting Type	Surface Mount	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	60	20 - 120
Number of Rows	2	2
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm

P50L Series

CONN PLUG 80POS SMD GOLD

Part	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mated Stacking Heights	Mounting Type	Features	Number of Rows	Height Above Board	Height Above Board	Connector Type	Contact Finish Thickness	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
3M P50L-080P-AS-TGF	Gold	0.05 in	1.27 mm	5 mm	0.197 in	80	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2
3M P50L-040S-BS-TGF	Gold	0.05 in	1.27 mm			40	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2	6.4 mm	0.252 in	Outer Shroud Contacts, Socket
3M P50L-040P-C-TGF	Gold	0.05 in	1.27 mm	8 mm	0.315 in	40	9 mm, 10 mm, 12 mm	Through Hole	Board Lock, Flange	2
3M P50L-050S-A-DA	Gold	0.05 in	1.27 mm			50	7 mm, 9 mm	Through Hole	Board Lock, Flange	2	5.4 mm	0.213 in	Outer Shroud Contacts, Socket	Flash
3M P50L-020S-AS-DA	Gold	0.05 in	1.27 mm			20	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2	5.4 mm	0.213 in	Outer Shroud Contacts, Socket	Flash
3M P50L-060P-AS-DA	Gold	0.05 in	1.27 mm	5 mm	0.197 in	60	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2				Flash
3M P50L-060P-RR1-DA	Gold	0.05 in	1.27 mm			60		Through Hole, Right Angle	Board Lock, Flange	2	0.275 in			Flash	6.99 mm
3M P50L-020S-RR1-TGF	Gold	0.05 in	1.27 mm			20		Through Hole, Right Angle		2	0.275 in		Outer Shroud Contacts, Socket		6.99 mm	3 Áin	0.076 Ám
3M P50L-060S-AS-DA	Gold	0.05 in	1.27 mm			60	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2	5.4 mm	0.213 in	Outer Shroud Contacts, Socket	Flash
3M P50L-040S-BS-DA	Gold	0.05 in	1.27 mm			40	7 mm, 8 mm	Surface Mount	Board Guide, Solder Retention	2	6.4 mm	0.252 in	Outer Shroud Contacts, Socket	Flash
