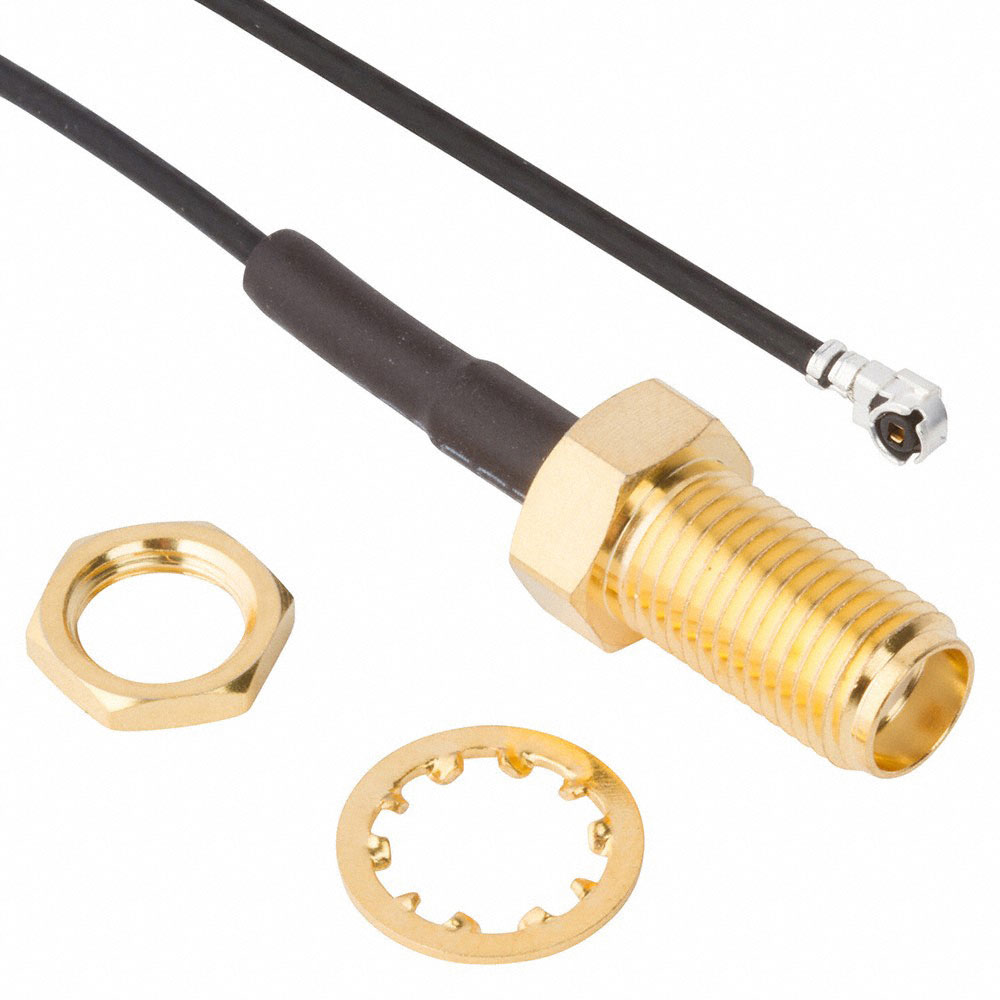

Specification	336313-14-0100

1st Connector	SMA Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	U.FL (UMCC), AMC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Outer Diameter	1.37 mm
Cable Type	Coaxial Cable, OD Coaxial Cable
Cable Type Size	1.37
Color	Black
Frequency - Max	6000 MHz
Length	3.937 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC), AMC to SMA

336313 Series

Part	Color	Length	2nd Connector Mounting Type	2nd Contact Gender	Style	Cable Type Size	Cable Type	Cable Outer Diameter	1st Contact Gender	1st Connector	2nd Connector	1st Connector Mounting Feature	1st Connector Mounting Type	Frequency - Max	Overall Impedance
McGill Microwave Systems 336313-13-0150	Black	5.906 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-13-0300	Black	11.811 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-13-0250	Black	9.843 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-13-0050	Black	1.969 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-14-0100	Black	3.937 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms

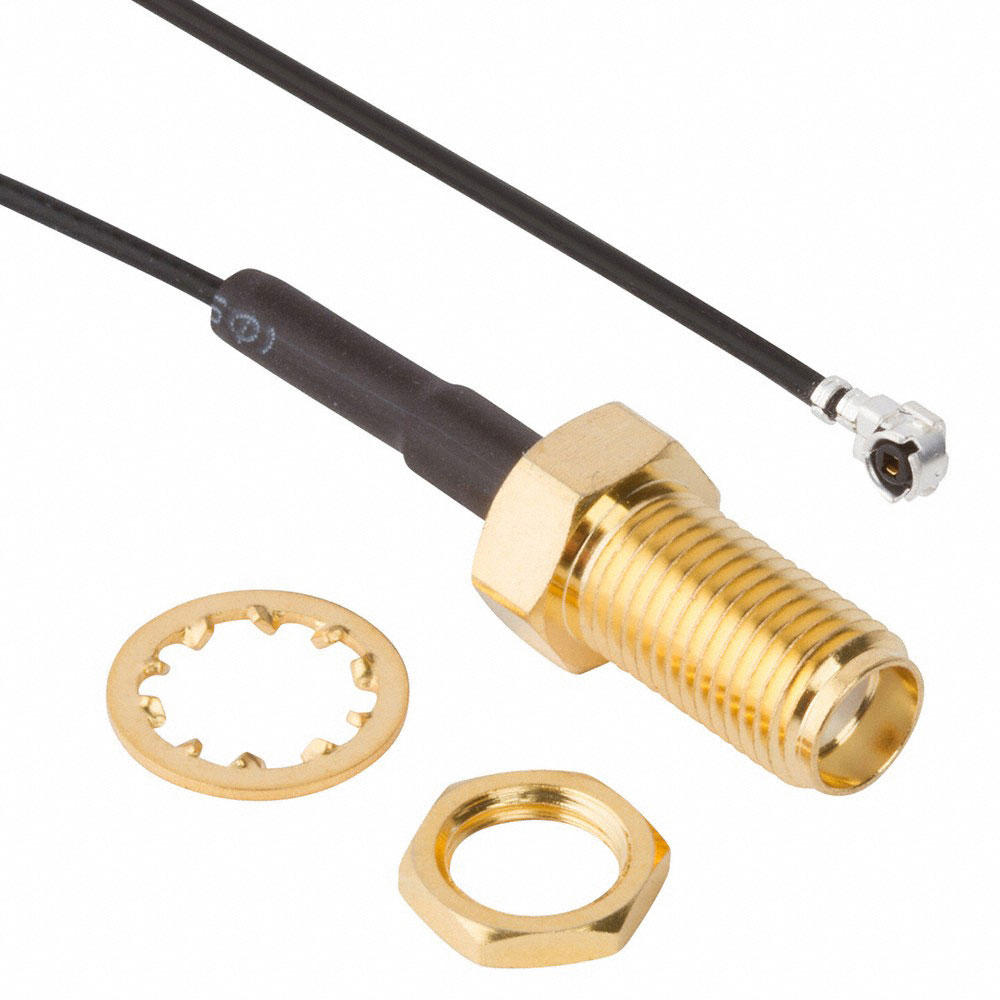

McGill Microwave Systems 336313-12-0200	Black	7.874 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-14-0200	Black	7.874 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-14-0150	Black	5.906 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-14-0300	Black	11.811 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
McGill Microwave Systems 336313-12-0300	Black	11.811 in	Free Hanging (In-Line)	Female	AMC to SMA U.FL (UMCC)	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	SMA Jack	AMC Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	Panel Mount	6000 MHz	50 Ohms
