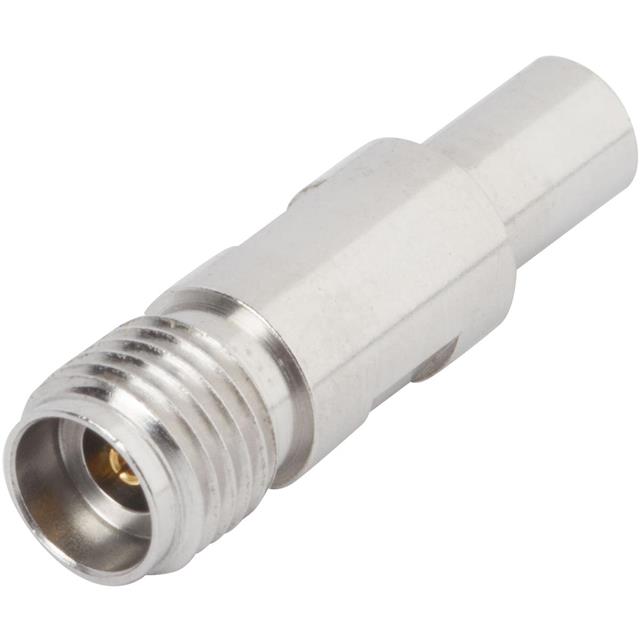

Specification	SF1112-6025

Adapter Series	SMP
Adapter Series Size	2.92 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	SMP Plug, Male Pin
Convert To (Adapter End)	Jack, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Model	OS-2.9
Convert To (Adapter End) Size	2.92 mm
Convert To (Adapter End) Type	Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Limited Detent
Frequency - Max	40 Gbps
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Style	Straight

SF1112 Series

Part	Dielectric Material	Body Material	Center Contact Material	Mating Cycles	Conversion Type	Convert To (Adapter End) Size	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Fastening Type	Center Gender	Frequency - Max	Convert From (Adapter End)	Features	Adapter Type	Style	Impedance	Center Contact Plating	Adapter Series	Adapter Series Size	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Includes Total Count	Includes	Body Finish
McGill Microwave Systems SF1112-6031	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	1000 cycles	Between Series	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Snap-On Threaded	Female Male	40 Gbps	Male Pin SMP Plug	Smooth Bore	Plug to Jack	Straight	50 Ohm	Gold	SMP	2.92 mm	Free Hanging (In-Line)

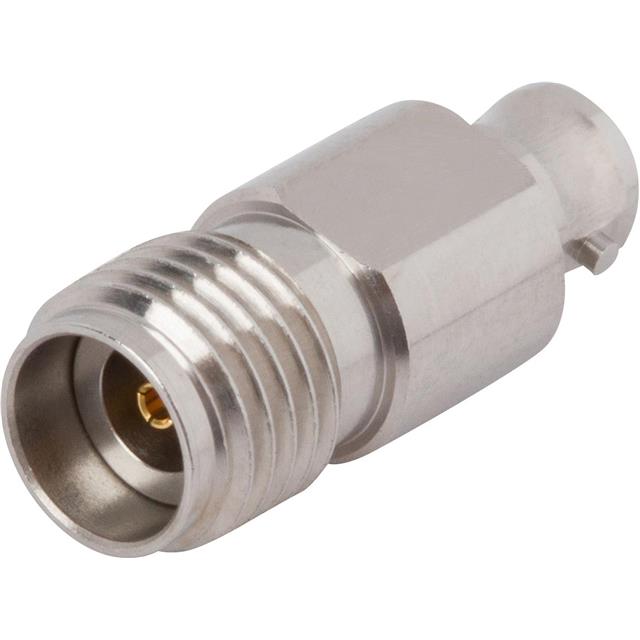

McGill Microwave Systems SF1112-6144	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	500 cycles	Between Series	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Bayonet Lock Threaded	Female Male	40 Gbps	Male Pin SMP Plug		Plug to Jack	Straight	50 Ohm	Gold	SMP	2.92 mm	Free Hanging (In-Line)	-65 °C	165 °C
McGill Microwave Systems SF1112-6162	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper		Between Series				SMP Plug	Male Pin	Snap-On Threaded	Female Male	18 GHz	Female Socket SMA Jack	Hermetically Sealed	Plug to Jack	Straight	50 Ohm	Gold	SMA to SMP		Panel Mount	-65 °C	165 °C	Bulkhead	2 pcs	Connector Nut	Gold
McGill Microwave Systems SF1112-6025	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	500 cycles	Between Series	2.92 mm	OS-2.9	Female Socket Jack	Jack	Female Socket	Snap-On Threaded	Female Male	40 Gbps	Male Pin SMP Plug	Limited Detent	Plug to Jack	Straight	50 Ohm	Gold	SMP	2.92 mm	Free Hanging (In-Line)
