GS21-333-20-00-0000-00

Active

SCHURTER Inc.

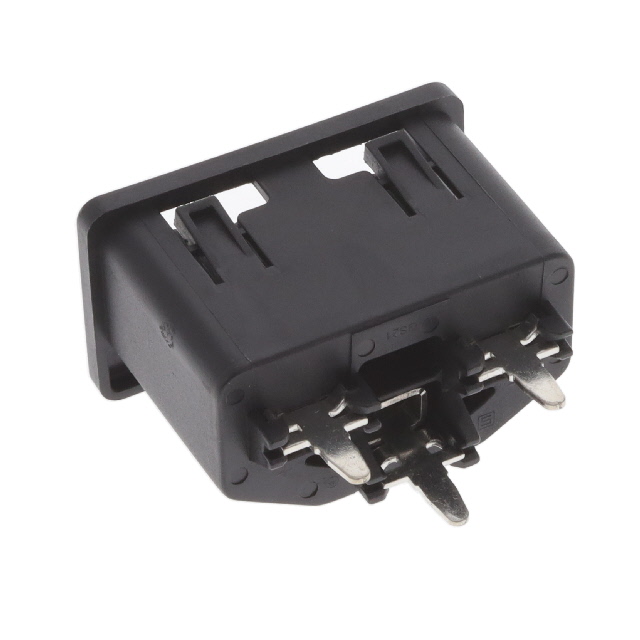

GS21 SOCKET-OUTLET FOR 400 VDC S

Search across all available documentation for this part.

Active

SCHURTER Inc.

GS21 SOCKET-OUTLET FOR 400 VDC S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GS21-333-20-00-0000-00	GS21 Series

Approval Agency	UL, VDE	UL, VDE
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	22.6 mm	22.6 mm
Panel Cutout Dimensions [y]	39.6 mm	39.6 mm
Panel Thickness	2 mm	2 mm
Panel Thickness	0.079 in	0.079 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	Solder	Solder, Quick Connect
Termination	-	0.25 in
Termination	-	6.3 mm

GS21 SOCKET-OUTLET FOR 400 VDC S

Part	Panel Thickness	Panel Thickness	Approval Agency	Connector Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]	Termination	Termination
SCHURTER Inc. GS21-333-20-00-0000-00	2 mm	0.079 in	UL, VDE	Receptacle, Female Sockets	Panel Mount, Snap-In	39.6 mm	22.6 mm	Solder	UL94 V-0
SCHURTER Inc. GS21-333-15-00-0000-00			UL, VDE	Receptacle, Female Sockets	Panel Mount, Snap-In	39.6 mm	22.6 mm	Solder	UL94 V-0	0.059 in	1.5 mm
SCHURTER Inc. GS21-111-20-00-0000-00	2 mm	0.079 in	UL, VDE	Receptacle, Female Sockets	Panel Mount, Snap-In	39.6 mm	22.6 mm	Quick Connect	UL94 V-0			0.25 in	6.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Receptacle, Female Sockets Panel Mount, Snap-In
