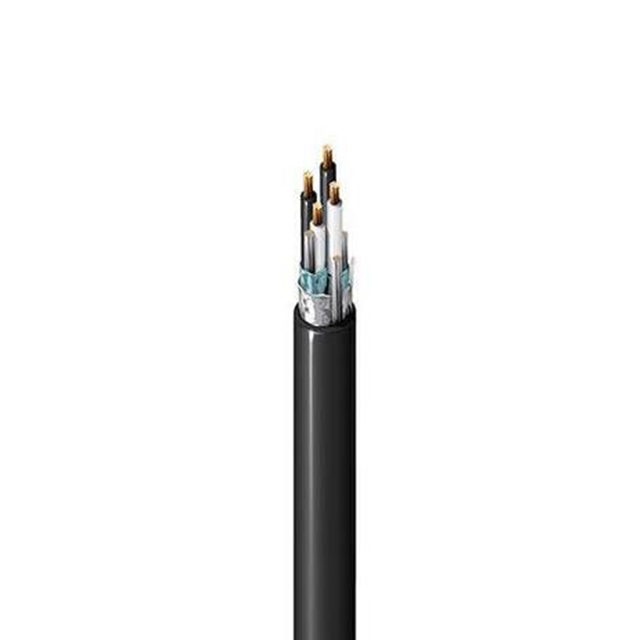

1044A 0102500

Active

Belden Inc.

MULTI-PAIR 40COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 40COND 16AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1044A 0102500	1044A Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	7	7
Conductor Strand [custom]	24	24
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	28.47 mm	28.47 mm
Jacket (Insulation) Diameter [diameter]	1.121 in	1.121 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in	0.084 in
Jacket (Insulation) Thickness	2.134 mm	2.134 mm
Jacket Color	Black	Black
Length	2500 ft	2500 ft
Length	762 m	762 m
Number of Conductors	40	40
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	16 AWG	16 AWG

MULTI-PAIR 40COND 16AWG

Part	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Coverage	Wire Gauge	Jacket Color	Shield Type	Length	Length	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1044A 0102500	40	28.47 mm	1.121 in	Aluminum	100 %	16 AWG	Black	Foil	2500 ft	762 m	Drain Wire, Rip Cord	0.084 in	2.134 mm	Multi-Pair	Copper, Bare	Poly-Vinyl Chloride (PVC)	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	7	24
Belden Inc. 1044A 0105000	40	28.47 mm	1.121 in	Aluminum	100 %	16 AWG	Black	Foil			Drain Wire, Rip Cord	0.084 in	2.134 mm	Multi-Pair	Copper, Bare	Poly-Vinyl Chloride (PVC)	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	7	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 21.49

General part information

40 (20 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 2500' (762.0m)
