321298

Active

TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M5, #10, 6 AWG, 15 MM², SOLISTRAND SERIES

Find alt

Alpha

321298

Active

TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M5, #10, 6 AWG, 15 MM², SOLISTRAND SERIES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

3212 Series

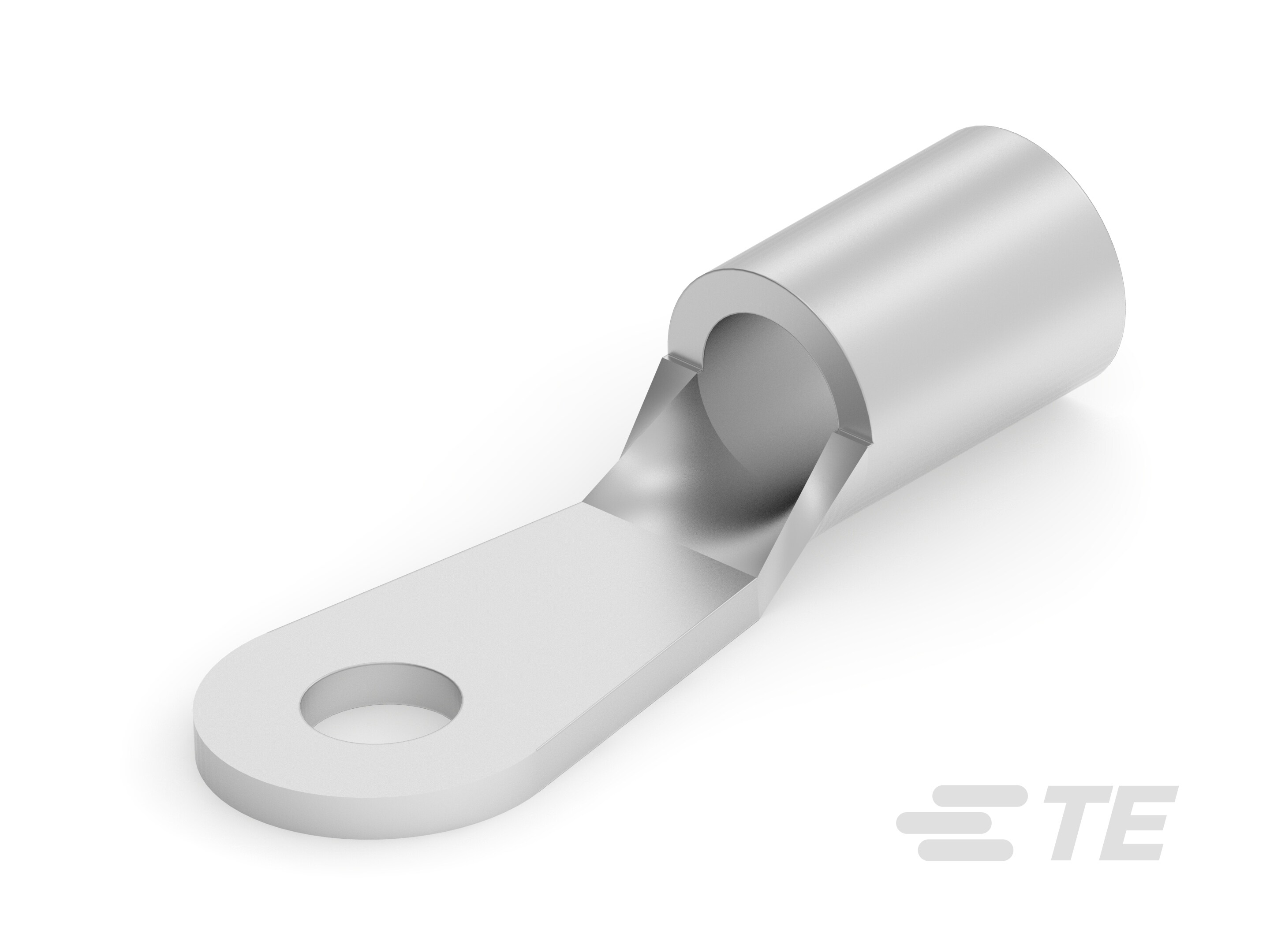

The 321298 is a Ring Tongue Terminal made of copper with tin plated finish. This straight closed barrel class 2 terminal features crimp termination and accepts 6AWG wire.

Technical Specifications

Parameters and characteristics for this part

Specification	321298

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Brazed Seam
Insulation	Non-Insulated
Length - Overall	1.168 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.057 in
Width - Outer Edges	0.468 in
Wire Gauge	6 AWG

3212 Series

Part	Contact Material	Contact Finish	Length - Overall	Thickness	Termination	Insulation	Width - Outer Edges	Features	Mounting Type	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Wire Gauge	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Wire Entries

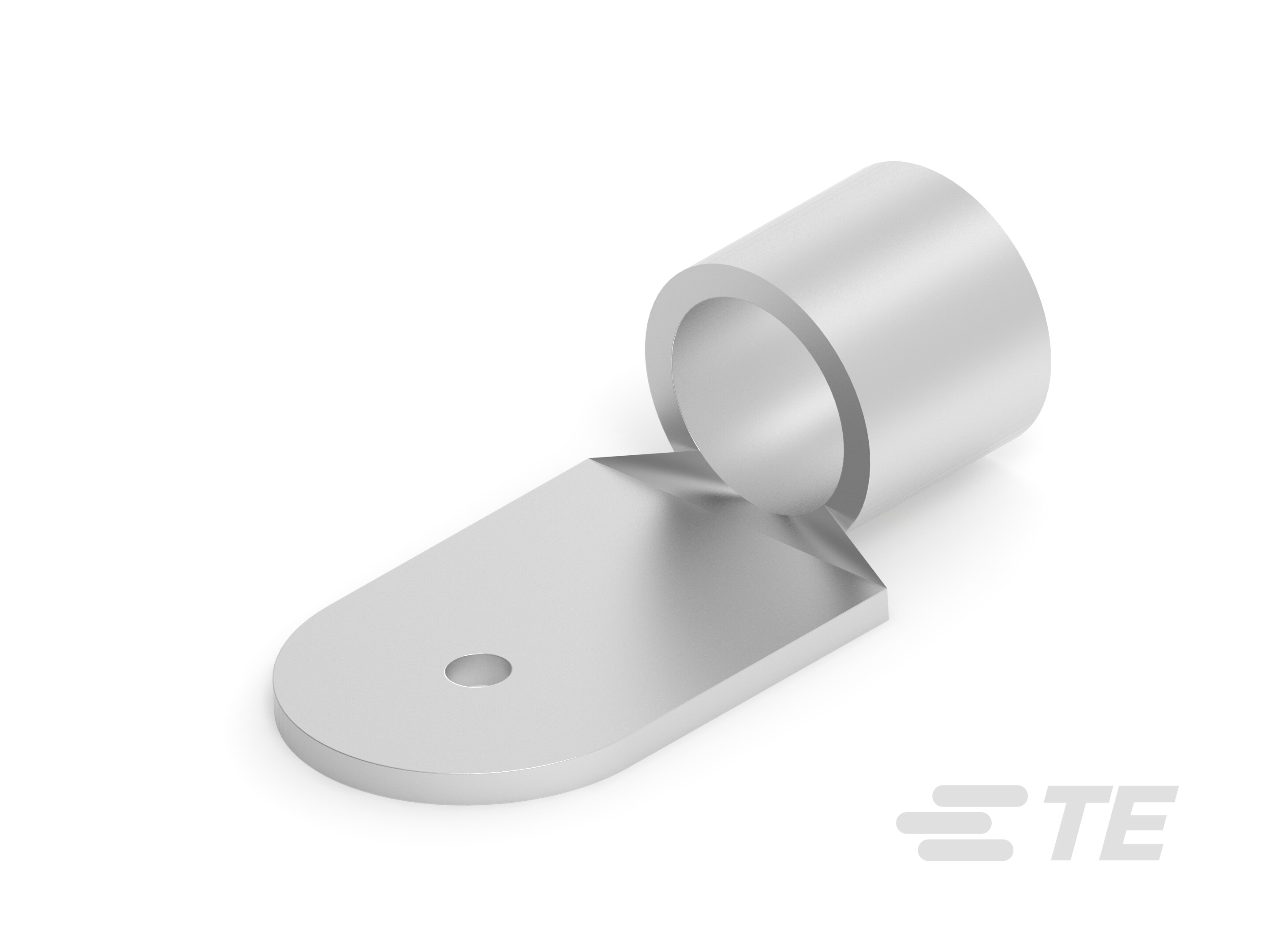

TE Connectivity AMP Connectors 321271	Copper	Tin	2.537 in	0.102 in	Crimp	Non-Insulated	1.15 in	Serrated Termination	Free Hanging (In-Line)	0.3125 in	Stud	16 Stud 5 Stud	4/0 AWG	Circular
TE Connectivity AMP Connectors 321298	Copper	Tin	1.168 in	0.057 in	Crimp	Non-Insulated	0.468 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	10 Stud			6 AWG	Circular

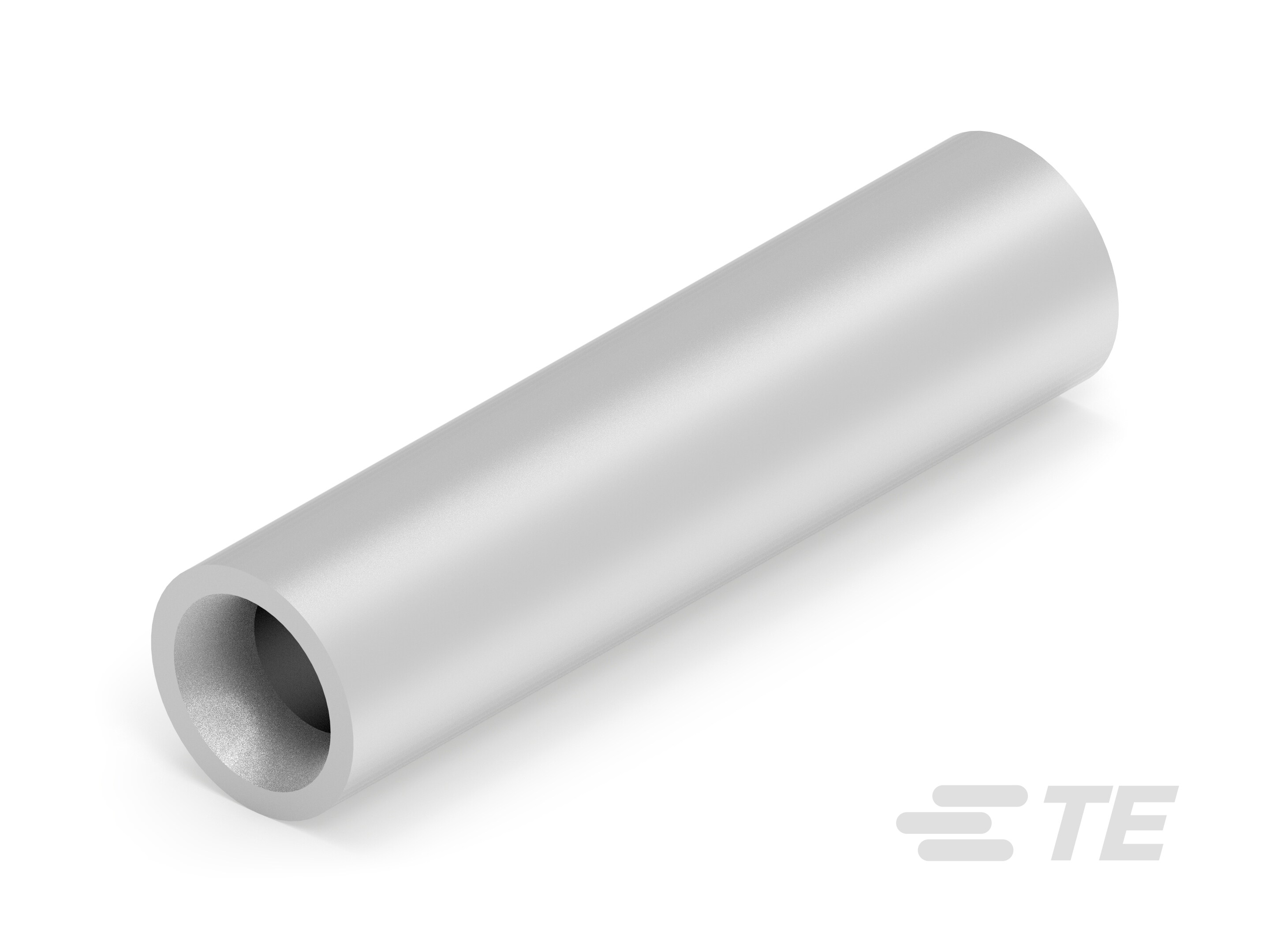

TE Connectivity AMP Connectors 321280					Crimp	Non-Insulated		Brazed Seam Serrated Mating Area						Butt Splice Individual Openings Inline	14 AWG	12 AWG	2

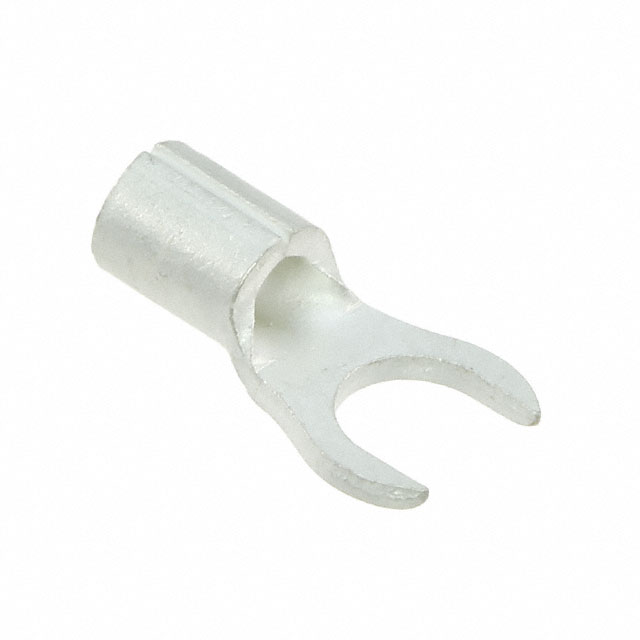

TE Connectivity AMP Connectors 321289	Copper	Tin	0.423 in	0.031 in	Crimp	Non-Insulated	0.218 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	6 Stud				Slotted	22 AWG	16 AWG
TE Connectivity AMP Connectors 321280					Crimp	Non-Insulated		Brazed Seam Serrated Mating Area						Butt Splice Individual Openings Inline	14 AWG	12 AWG	2
TE Connectivity AMP Connectors 321262	Copper	Tin		0.031 in	Crimp	Non-Insulated	0.281 in	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	6 Stud				Circular	22 AWG	16 AWG

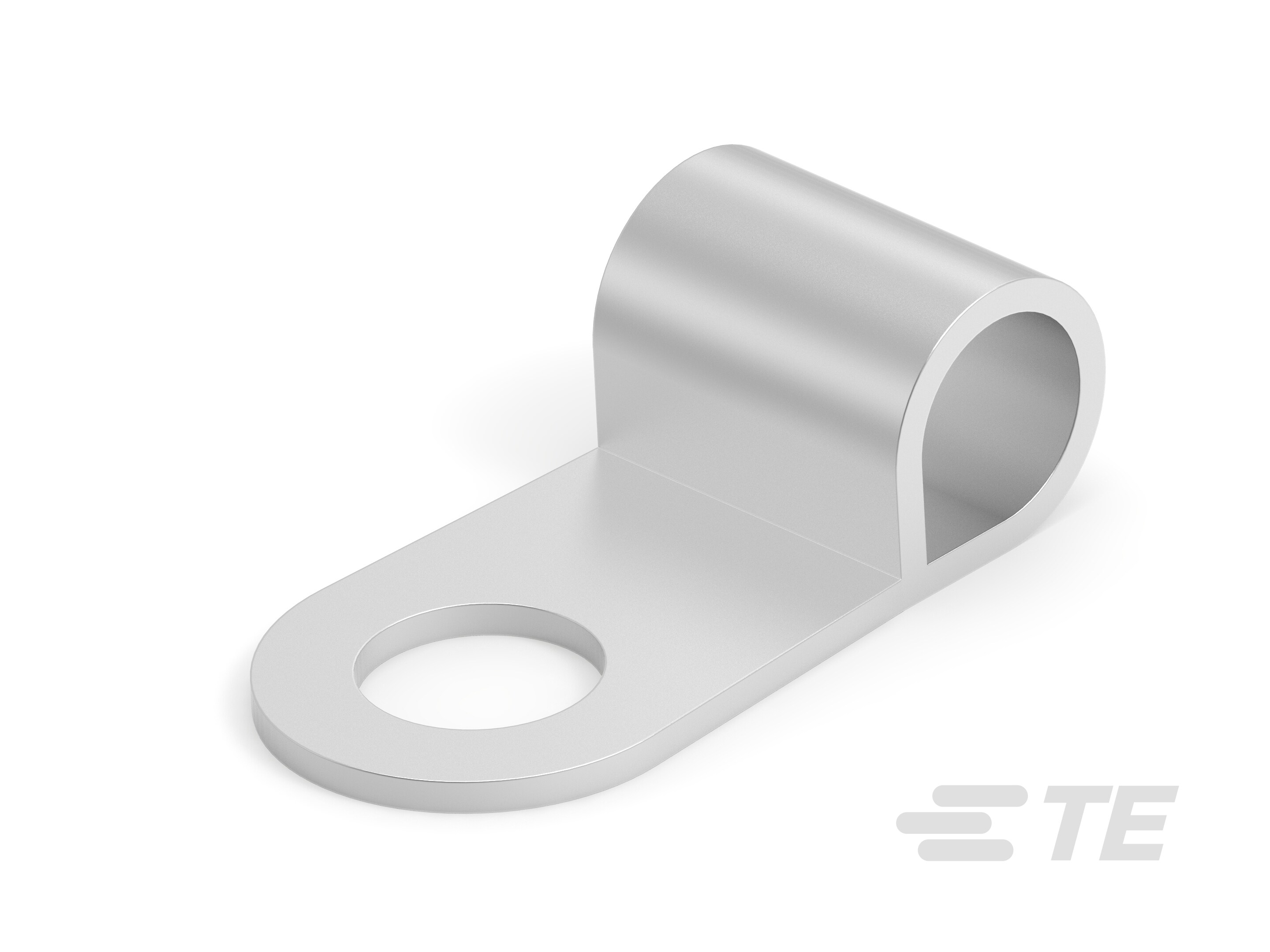

TE Connectivity AMP Connectors 321253	Copper	Tin		0.057 in	Crimb Flag	Non-Insulated	0.713 in	Brazed Seam	Free Hanging (In-Line)	0.375 in		3 Stud 8 Stud	2 AWG	Circular
TE Connectivity AMP Connectors 321201	Copper	Tin	1.437 in	0.057 in	Crimb Flag	Non-Insulated	0.713 in	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	0.25 Stud			2 AWG	Circular
TE Connectivity AMP Connectors 321275	Copper	Tin	1.048 in	0.048 in	Crimb Flag	Non-Insulated	0.546 in	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	0.25 Stud			4 AWG	Circular
