100R15-51B

Active

Parlex USA LLC

CABLE FFC/FPC 15POS 1MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 15POS 1MM 2"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

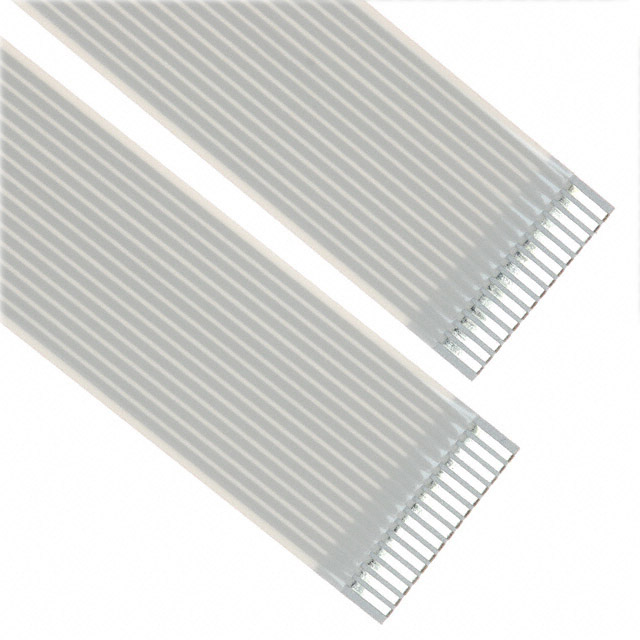

15 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	100R15-51B	100R15 Series

Cable Type	FPC, FFC	FPC, FFC
Length	50.8 mm	50.8 - 457.2 mm
Length	2 in	2 - 18 in
Length	-	152 - 203 mm
Length	-	5.984 - 12 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	15	15
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides, Top on One Side, Bottom on Other, Backers on Both Sides

CABLE FFC/FPC 15POS 1MM 7.99"

Part	Cable Type	Termination Style	Number of Conductors	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length [x]	Length [x]	Length	Length
Parlex USA LLC 100R15-203B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm	203 mm	7.992 in
Parlex USA LLC 100R15-102B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			4 in	101.6 mm
Parlex USA LLC 100R15-76B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			3 in	76.2 mm
Parlex USA LLC 100R15-127B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			5 in	127 mm
Parlex USA LLC 100R15-51B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			2 in	50.8 mm
Parlex USA LLC 100R15-457B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			18 "	457.2 mm
Parlex USA LLC 100R15-254B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm		10 in		254 mm
Parlex USA LLC 100R15-152B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm	152 mm	5.984 in
Parlex USA LLC 100R15-175BO	FFC, FPC	Top on One Side, Bottom on Other, Backers on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm			6.89 "	175 mm
Parlex USA LLC 100R15-305B	FFC, FPC	Backers on Both Sides, Top on Both Sides	15	0.039 in	1 mm	0.14 in	3.56 mm		12 in		304.8 mm
