PHG.2K.302.CYMC70Z

Active

LEMO

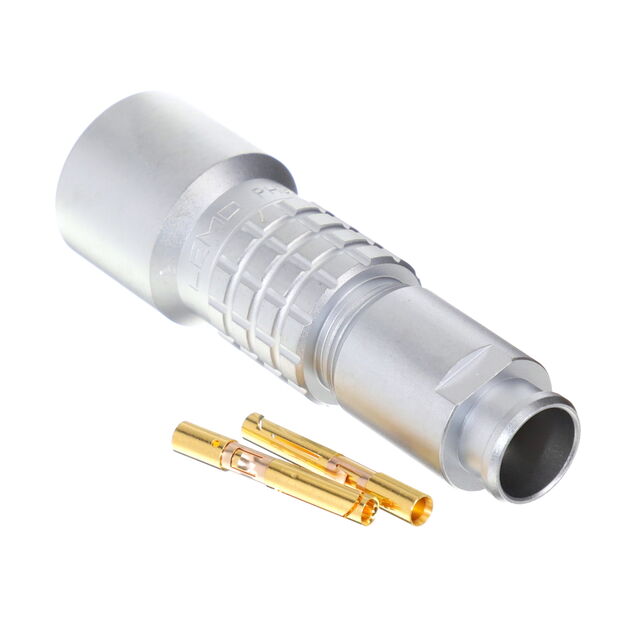

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.2K.302.CYMC70Z

Active

LEMO

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 57.81
		10	$ 53.05
		25	$ 51.01

Description

General part information

PHG.2K Series

2 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.2K.302.CYMC70Z	PHG.2K Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.201 - 0.335 in
Cable Opening	-	5.1 - 8.5 mm
Cable Opening	-	3.5 - 7.5 mm
Cable Opening	-	4.1 - 9.6 mm
Cable Opening	-	4.5 - 5 mm
Cable Opening	-	0.161 - 0.378 in
Cable Opening	-	0.177 - 0.394 in
Cable Opening	-	10 mm
Cable Opening	-	5.5 mm
Cable Opening [Max] [custom]	7 mm	7 - 8 mm
Cable Opening [Max] [custom]	0.276 in	0.138 - 0.315 in
Cable Opening [Min] [custom]	0.26 in	0.122 - 0.299 in
Cable Opening [Min] [custom]	6.6 mm	3.1 - 7.6 mm
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	25 A	2 - 25 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2 - 26
Number of Positions	-	16
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 708
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

PHG.2K Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Shielding	Insert Material	Shell Material	Contact Finish - Mating	Backshell Material, Plating	Contact Material	Primary Material	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Orientation	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Ingress Protection	Color	Current Rating (Amps)	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination	Cable Opening [Max] [custom]
LEMO PHG.2K.708.CJLC85	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	708	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	9	UL94 V-0	IP66/IP68	Silver
LEMO PHG.2K.310.CYMC65	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	310			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	10	UL94 V-0	IP66/IP68	Silver	8 A	0.256 in	0.24 in	6.5 mm	6.1 mm	Crimp
LEMO PHG.2K.308.CYMK95	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	308			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	8	UL94 V-0	IP66/IP68	Silver	10 A					Crimp
LEMO PHG.2K.302.CYMC70Z	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	302			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	2	UL94 V-0	IP66/IP68	Silver	25 A	0.276 in	0.26 in		6.6 mm	Crimp	7 mm
LEMO PHG.2K.312.CYMC80Z	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	312			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	12	UL94 V-0	IP66/IP68	Silver	7 A	0.315 in	0.299 in		7.6 mm	Crimp	8 mm
LEMO PHG.2K.304.CLLC60Z	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	304	0.22 in, 0.236 in	5.6 mm, 6 mm	Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	4	UL94 V-0	IP66/IP68	Silver	15 A
LEMO PHG.2K.310.CLLC60	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	310	0.22 in, 0.236 in	5.6 mm, 6 mm	Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	10	UL94 V-0	IP66/IP68	Silver	8 A
LEMO PHG.2K.312.CLLK95	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	312			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	12	UL94 V-0	IP66/IP68	Silver	7 A
LEMO PHG.2K.314.CLLC85	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	314	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	14	UL94 V-0	IP66/IP68	Silver	6.5 A
LEMO PHG.2K.319.CLLC75Z	Shielded	Polyetheretherketone (PEEK)	Brass	Gold	Brass, Chrome	Bronze	Metal	319			Chrome	G	Receptacle, Female Sockets	Backshell	-55 °C	200 °C	Push-Pull	Free Hanging (In-Line)	59 Áin	1.5 Ám	19	UL94 V-0	IP66/IP68	Silver	5 A	0.295 in	0.28 in	7.5 mm	7.1 mm
