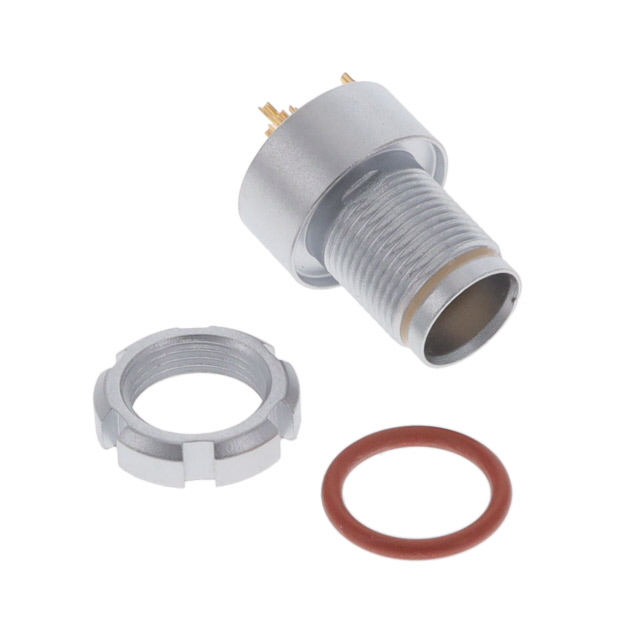

GKCWAC-P07LBC0-000L

Active

ODU

CONN RCPT FMALE 7POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	GKCWAC-P07LBC0-000L

Applications	Medical, Industrial, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded
Voltage Rating	250 VDC

Part	Ingress Protection	Primary Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Material	Shielding	Orientation	Contact Finish - Mating	Fastening Type	Applications	Connector Type	Shell Finish	Shell Size - Insert	Color	Voltage Rating	Mounting Type	Termination
ODU GKCWAC-P07LBC0-000L	IP68 - Dust Tight Waterproof	Metal	Bulkhead - Front Side Nut	-51 °C	125 °C	7	Brass	Shielded	A	Gold	Detent Lock Push-Pull	Industrial Medical Military	Receptacle Female Sockets	Chrome	00	Silver	250 VDC
ODU GKCWAC-P07QB00-000L	IP68 - Dust Tight Waterproof	Metal	Bulkhead - Front Side Nut	-51 °C	125 °C	7	Brass	Shielded	A	Gold	Detent Lock Push-Pull	Industrial Medical Military	Receptacle Female Sockets	Chrome	00	Silver	250 VDC	Panel Mount Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
