Specification	53055

Color	Yellow, Blue Stripe
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Insulation Restriction
Insulation	Insulated
Insulation Diameter (Max)	0.055 in
Insulation Diameter (Min)	0.031 in
Length - Overall	0.792 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.027 in
Width - Outer Edges	0.25 in
Wire Gauge	24 AWG

5305 Series

Part	Insulation Diameter (Max)	Insulation Diameter (Min)	Material - Insulation	Termination	Color	Contact Finish	Length - Overall	Insulation	Contact Material	Mounting Type	Thickness	Wire Gauge	Features	Stud/Tab Size	Terminal Type	Width - Outer Edges

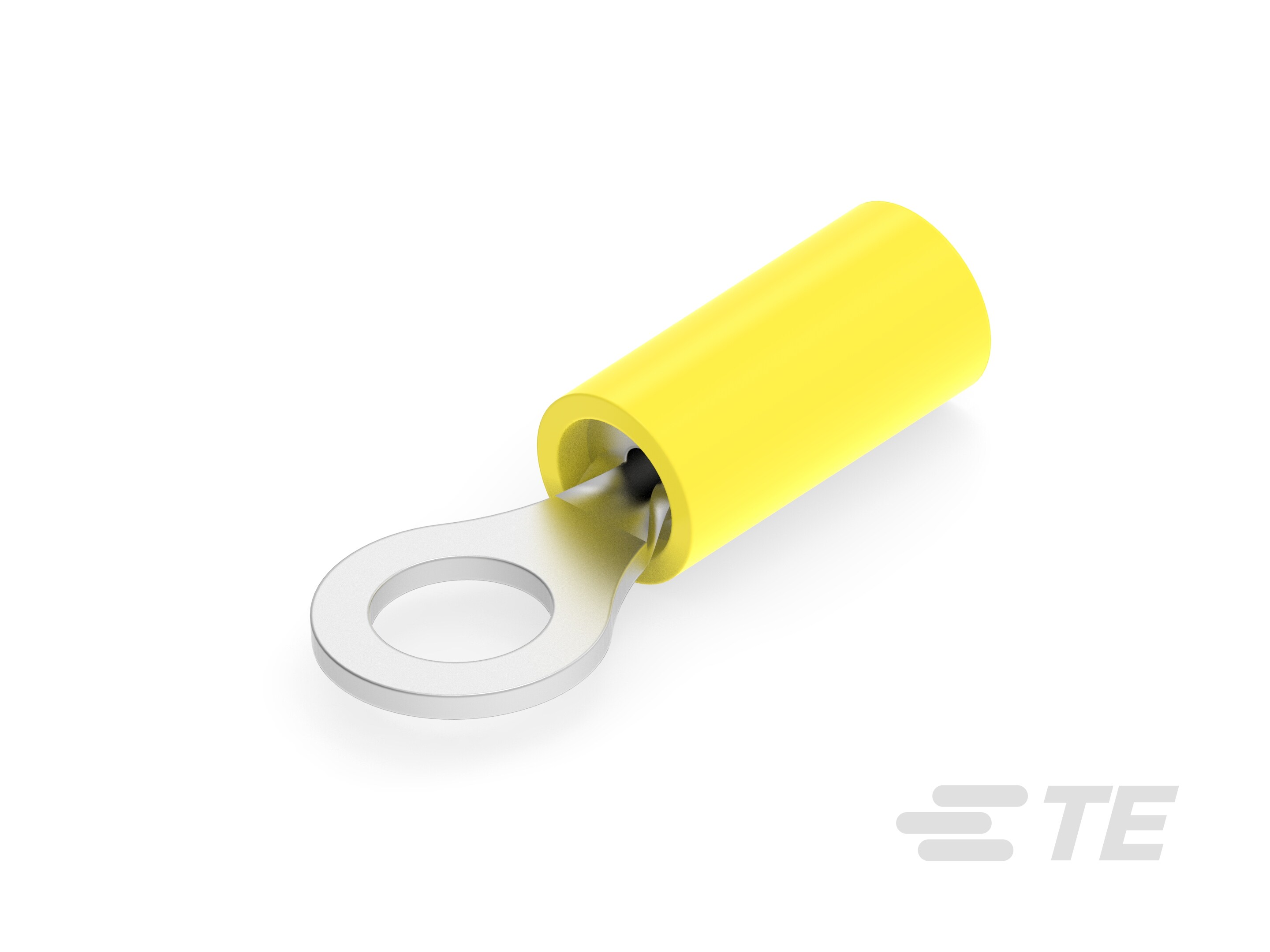

TE Connectivity AMP Connectors 53051	0.055 in	0.026 in	Nylon PA Polyamide	Crimp	Black Stripe Yellow	Tin	0.814 in	Insulated	Copper	Free Hanging (In-Line)	0.027 in	26 AWG	Insulation Restriction Serrated Termination	8 Stud	Circular	0.281 in
TE Connectivity AMP Connectors 53055	0.055 in	0.031 in	Nylon PA Polyamide	Crimp	Blue Stripe Yellow	Tin	0.792 in	Insulated	Copper	Free Hanging (In-Line)	0.027 in	24 AWG	Insulation Restriction Serrated Termination	6 Stud	Circular	0.25 in
