C4066A.41.10

Active

Prysmian Group

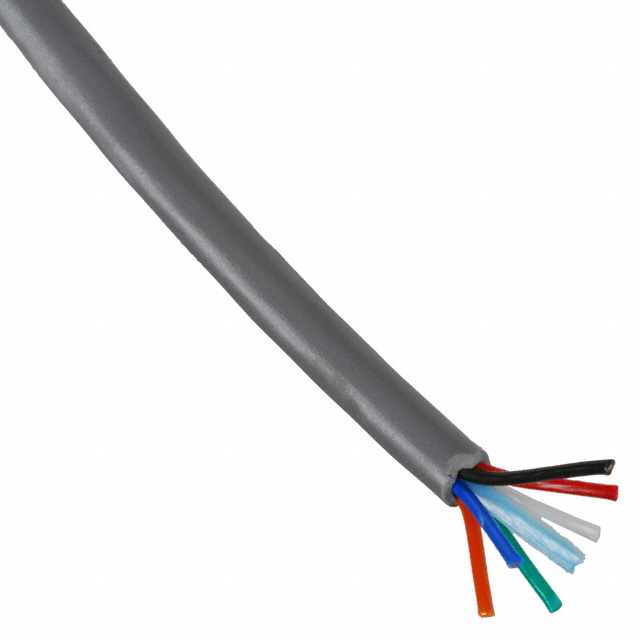

CABLE 6COND 22AWG GRAY 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 22AWG GRAY 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C4066A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.54 mm
Jacket (Insulation) Diameter [diameter]	0.218 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length [x]	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Voltage	Conductor Material	Jacket (Insulation) Material	Conductor Insulation	Usage	Length [x]
Prysmian Group C4066A.41.10	Multi-Conductor	7	30 AWG	15.24 m 304.8 m	50 ft	6	-20 C	80 C	1000 ft	5.54 mm	0.218 in	22 AWG	Gray	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication Control
Prysmian Group C4066A.38.10	Multi-Conductor	7	30 AWG		500 '	6	-20 C	80 C		5.54 mm	0.218 in	22 AWG	Gray	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication Control	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Gray 22 AWG 50.00' (15.24m)
