R113081000

Active

Radiall USA, Inc.

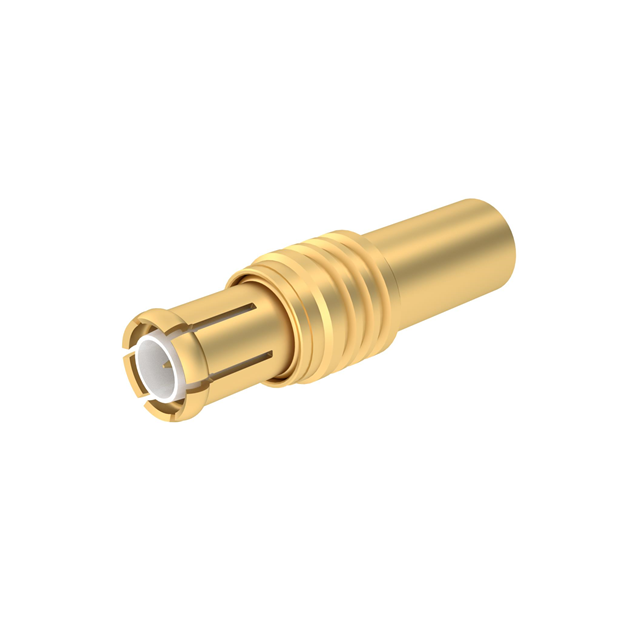

RF MCX CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF MCX CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R113081000

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Dielectric Material	Fastening Type	Connector Type	Mounting Type	Cable Group	Cable Group	Body Finish	Center Contact Plating	Number of Ports	Voltage Rating	Frequency - Max [Max]	Mating Cycles	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Housing Color	Contact Termination	Center Contact Material	Connector Style	Shield Termination
Radiall USA, Inc. R113081000	Polytetrafluoroethylene (PTFE)	Snap-On	Male Pin Plug	Free Hanging (In-Line)	196	RG-178	Gold	Gold	1	170 V	6000 MHz	500	Brass	155 °C	-55 °C	50 Ohms	Gold	Crimp	Brass	MCX	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
