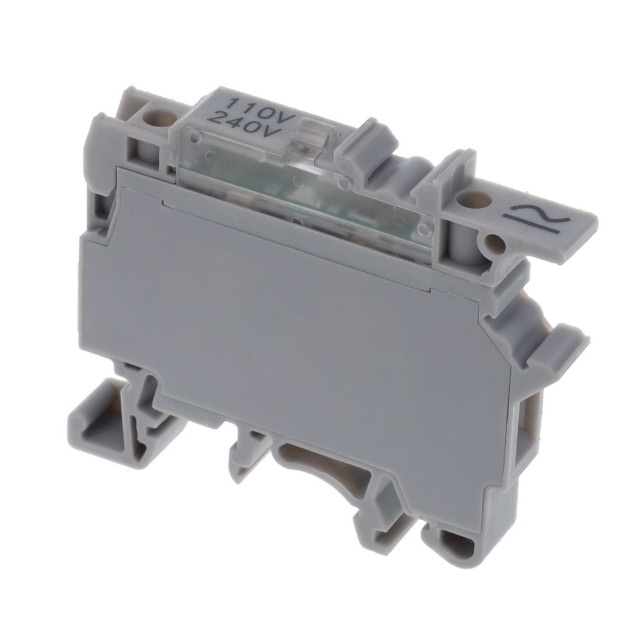

CF4U(L)/110-240V
ActiveTE Connectivity Raychem Cable Protection
FUSE TERM W110-240V LED 10A 600V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF4U(L)/110-240V
ActiveTE Connectivity Raychem Cable Protection
FUSE TERM W110-240V LED 10A 600V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF4U(L)/110-240V |
|---|---|
| Color | Gray |
| Current - IEC | 6.3 A |
| Current - UL | 10 A |
| Disconnect Type | Fuse, Lever |
| Features | LED Indicator |
| Fuse Type | 5mm x 25mm, 5mm x 20mm |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 9.5 mm |
| Terminal - Width [y] | 8 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.62 | |
| 50 | $ 4.50 | |||
| 100 | $ 4.33 | |||
| 1000 | $ 3.31 | |||
Description
General part information
CF4U Series
Terminal Block Connector 2 Position Disconnect Gray 10-22 AWG
