415-47-212-41-004000

Active

Mill-Max Manufacturing Corp.

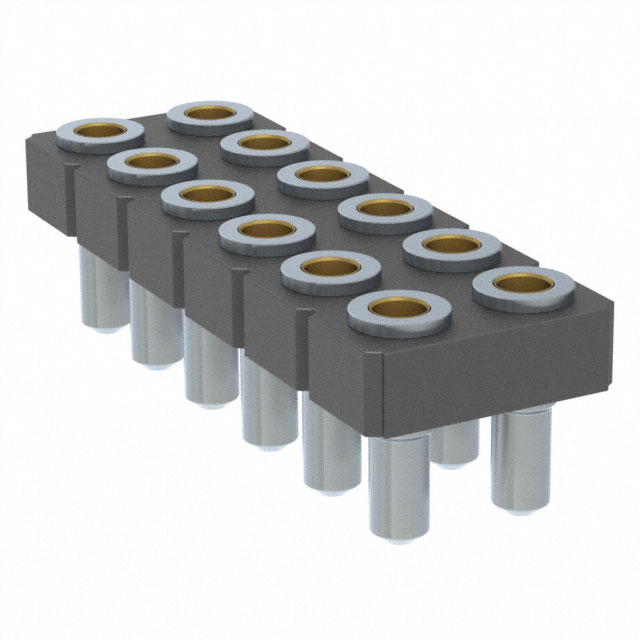

CONN SOCKET 12POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

415-47-212-41-004000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET 12POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-47-212-41-004000

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	2.08 mm
Contact Length - Post [x]	0.082 "
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

415-47 Series

Part	Contact Finish - Mating	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Termination	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Shape	Number of Positions Loaded	Contact Material	Connector Type	Number of Positions	Material Flammability Rating	Voltage Rating
Mill-Max Manufacturing Corp. 415-47-212-41-004000	Gold	0.05 in	1.27 mm	2	2.54 mm	0.1 in	Push-Pull	Solder	Through Hole	200 µin	5.08 µm	Tin	0.1 in	2.54 mm	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	-55 °C	125 °C	12	2.08 mm	0.082 "	3 A	Flash	Circular	All	Beryllium Copper	Socket
Mill-Max Manufacturing Corp. 415-47-216-41-004000	Gold	0.05 in	1.27 mm	2	2.54 mm	0.1 in	Push-Pull	Solder	Through Hole	200 µin	5.08 µm	Tin	0.1 in	2.54 mm	Black	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	-55 °C	125 °C		2.08 mm	0.082 "	3 A	Flash	Circular	All	Beryllium Copper	Socket	16
Mill-Max Manufacturing Corp. 415-47-230-41-004000	Gold	0.05 in	1.27 mm	2	2.54 mm	0.1 in	Push-Pull	Solder	Through Hole	200 µin	5.08 µm	Tin	0.1 in	2.54 mm	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	-55 °C	125 °C	30	2.08 mm	0.082 "	3 A	Flash	Circular	All	Beryllium Copper	Socket		UL94 V-0	100 V 150 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.42
		34	$ 2.94
		102	$ 2.73
		510	$ 2.41

Description

General part information

415-47 Series

12 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
