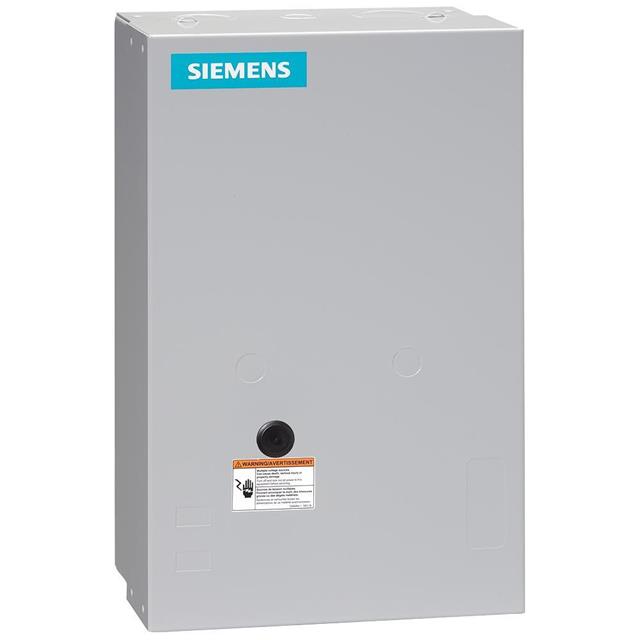

43BP32BS
ActiveSiemens
CONTACTOR-REV,SZ00,3PH,N1,24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43BP32BS
ActiveSiemens
CONTACTOR-REV,SZ00,3PH,N1,24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43BP32BS |
|---|---|
| Coil Power | 163 VA |
| Coil Voltage | 24 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Material | Copper |
| Contact Rating (Current) | 9 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 20.4 VDC |
| Operate Time | 21 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 11 ms |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1350.42 | |
Description
General part information
43BP Series
CONTACTOR-REV,SZ00,3PH,N1,24VDC
