76502TS 008100
ActiveBelden Inc.
MULTI-PAIR 4COND 26AWG GRAY 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMachFlex™ Industrial Cables
76502TS 008100
ActiveBelden Inc.
MULTI-PAIR 4COND 26AWG GRAY 100'
Deep-Dive with AI
DocumentsMachFlex™ Industrial Cables
Technical Specifications
Parameters and characteristics for this part
| Specification | 76502TS 008100 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7 Strands, 34 AWG |
| Features | Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 6.2 mm |
| Jacket (Insulation) Diameter [diameter] | 0.244 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Gray |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Ratings | UL Style 20006 |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 226.91 | |
| 2 | $ 215.85 | |||
| 3 | $ 209.60 | |||
| 5 | $ 201.93 | |||
| 7 | $ 197.01 | |||
| 10 | $ 191.90 | |||
| 25 | $ 179.27 | |||
| 50 | $ 170.17 | |||
Description
General part information
76502TS Series

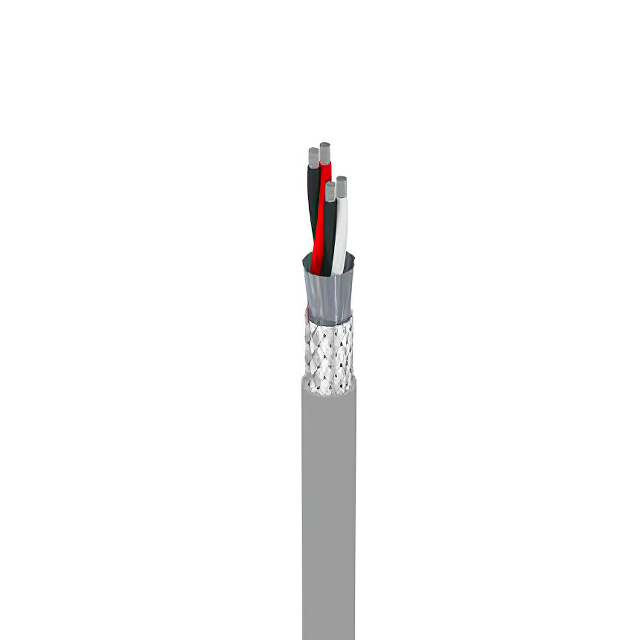

4 (2 Pair) Conductor Multi-Pair Cable Gray 26 AWG Foil, Braid 100.0' (30.5m)
