SFW24R-1STE1LF
ActiveAmphenol ICC (FCI)

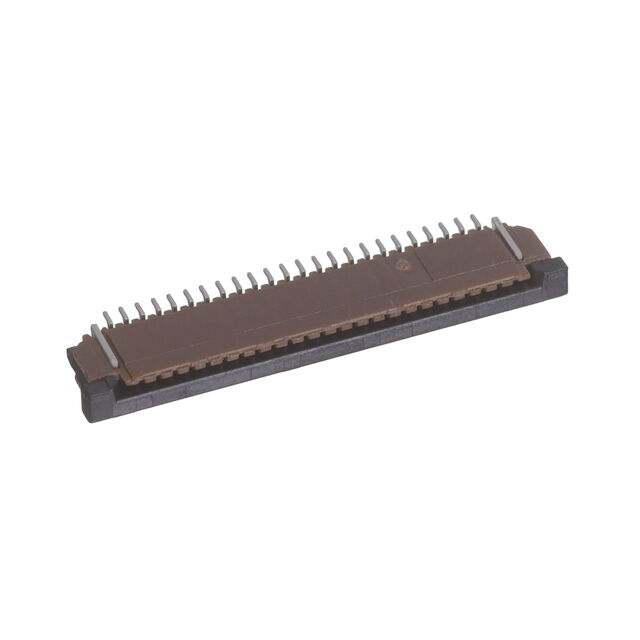

CONN FFC FPC BOTTOM 24POS 1MM RA
Deep-Dive with AI
Search across all available documentation for this part.
SFW24R-1STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC BOTTOM 24POS 1MM RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW24R-1STE1LF |
|---|---|
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Brown |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 24 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
