CONN D-SUB PLUG 25POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15-000593
ActiveAmphenol CONEC
CONN D-SUB PLUG 25POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 15-000593 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Zinc Die Cast |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Voltage Rating | 125 VDC |
| Wire Gauge | 20 AWG |
15-0005 Series
| Part | Number of Positions | Current Rating (Amps) | Shell Material, Finish | Wire Gauge | Ingress Protection | Shell Size, Connector Layout | Connector Type | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Style | Voltage Rating | Dielectric Material | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Flange Feature | Number of Rows | Termination | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | 15 | 7.5 A | Nickel Plated Zinc Die Cast | 20 AWG | IP67 - Dust Tight Waterproof | 2 | Male Pins Plug | Black | 8 çin | 0.203 çm | Gold | D-Sub | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 2 | |||||||||
Amphenol CONEC | 26 | 3 A | Nickel Plated Zinc Die Cast | IP67 - Dust Tight Waterproof | 2 | Receptacle Female Sockets | Black | 8 çin | 0.203 çm | Gold | D-Sub High Density | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 3 | Solder | Panel Mount Through Hole | (DA A) High Density | |||||||
Amphenol CONEC | 7.5 A | Nickel Plated Zinc Die Cast | 20 AWG | IP67 - Dust Tight Waterproof | Male Pins Plug | Black | 8 çin | 0.203 çm | Gold | D-Sub | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 2 | B DB | 3 | |||||||||
Amphenol CONEC | 44 | 3 A | Nickel Plated Zinc Die Cast | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Black | 8 çin | 0.203 çm | Gold | D-Sub High Density | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 3 | Solder | Panel Mount Through Hole | 3 | B DB | |||||||
Amphenol CONEC | 26 | 3 A | Nickel Plated Zinc Die Cast | IP67 - Dust Tight Waterproof | 2 | Male Pins Plug | Black | 8 çin | 0.203 çm | Gold | D-Sub High Density | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 3 | Solder | Panel Mount Through Hole | (DA A) High Density | |||||||
Amphenol CONEC | 9 | 7.5 A | Nickel Plated Zinc Die Cast | 20 AWG | IP67 - Dust Tight Waterproof | Male Pins Plug | Black | 8 çin | 0.203 çm | Gold | D-Sub | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -40 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 2 | DE E | 1 | ||||||||
Amphenol CONEC | 44 | 3 A | Nickel Plated Zinc Die Cast | IP67 - Dust Tight Waterproof | Male Pins Plug | Black | 8 çin | 0.203 çm | Gold | D-Sub High Density | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 3 | Solder | Panel Mount Through Hole | 3 | B DB | |||||||
Amphenol CONEC | 15 | 3 A | Nickel Plated Zinc Die Cast | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Black | 8 çin | 0.203 çm | Gold | D-Sub High Density | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | Signal | Copper Alloy | -25 °C | 105 ░C | UL94 V-0 | Female Screwlock (4-40) Mating Side | 3 | Solder | Panel Mount Through Hole | DE E | 1 | High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.61 | |
| 20 | $ 21.55 | |||
| 40 | $ 19.95 | |||
| 100 | $ 19.29 | |||
| 260 | $ 18.22 | |||
| 500 | $ 17.69 | |||
Description
General part information
15-0005 Series

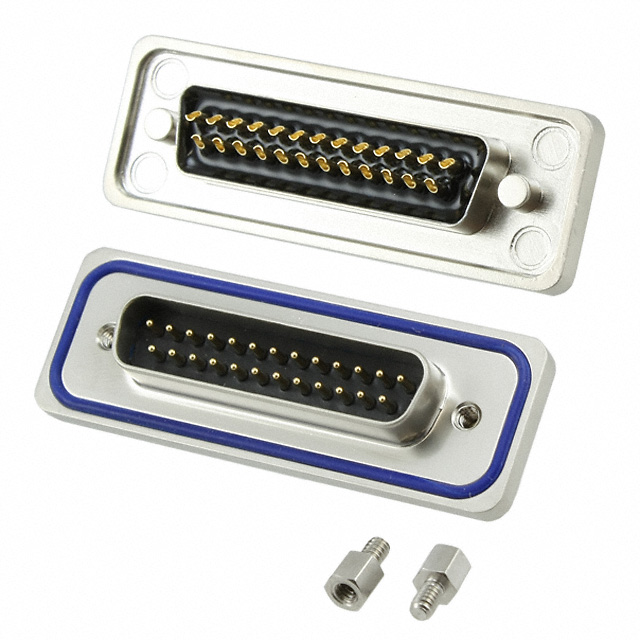

25 Position D-Sub Plug, Male Pins Connector
