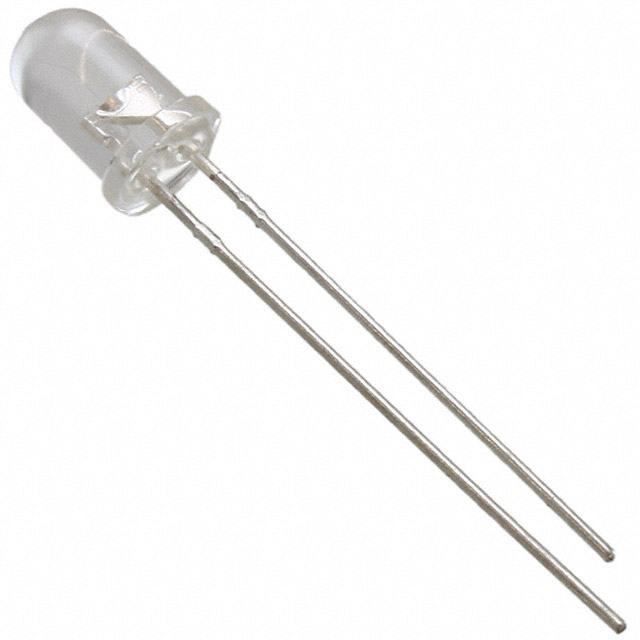

C503D-WAN-CCBEB152

Active

Cree LED

LED COOL WHITE CLR 5MM ROUND T/H

Search across all available documentation for this part.

Active

Cree LED

LED COOL WHITE CLR 5MM ROUND T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2500	$ 0.22

General part information

White, Cool 9000K LED Indication - Discrete 3.2V Radial

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C503D-WAN-CCBEB152	C503D Series

Color	Cool, White	Cool, White
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	10.1 mm	8.6 - 10.1 mm
Lens Color	Colorless	Colorless
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Size [diameter]	5 mm Dia	5 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	46400 mcd	33125 - 46400 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	-	5 mm
Supplier Device Package [diameter]	5 mm	5 mm
Viewing Angle	15 °	15 °
Voltage - Forward (Vf) (Typ)	3.2 V	3.2 V
Wavelength - Dominant [custom]	9000 K	9000 K

LED COOL WHITE CLR 5MM ROUND T/H

Part	Viewing Angle	Lens Size [diameter]	Millicandela Rating	Lens Color	Wavelength - Dominant [custom]	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Transparency	Configuration	Height (Max) [Max] [z]	Color	Supplier Device Package [diameter]	Lens Style	Mounting Type	Current - Test	Supplier Device Package	Lens Size	Lens Size
Cree LED C503D-WAN-CBBDB151	15 °	5 mm Dia	33125 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	8.6 mm	Cool, White	5 mm	Round with Domed Top	Through Hole	20 mA
Cree LED C503D-WAN-CCBDB231	15 °	5 mm Dia	37150 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	8.6 mm	Cool, White	5 mm	Round with Domed Top	Through Hole	20 mA
Cree LED C503D-WAN-CCADB232	15 °	5 mm Dia	34800 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	8.6 mm	Cool, White	5 mm	Round with Domed Top	Through Hole	20 mA
Cree LED C503D-WAN-CCBEB152	15 °	5 mm Dia	46400 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	10.1 mm	Cool, White	5 mm	Round with Domed Top	Through Hole	20 mA
Cree LED C503D-WAN-CCBEB232	15 °		46400 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	10.1 mm	Cool, White		Round with Domed Top	Through Hole	20 mA	5 mm	T-1 3/4	5 mm
Cree LED C503D-WAN-CCBEB231	15 °		46400 mcd	Colorless	9000 K	Radial	3.2 V	Clear	Standard	10.1 mm	Cool, White		Round with Domed Top	Through Hole	20 mA	5 mm	T-1 3/4	5 mm
